SMT Pick and Place Machine YAMAHA Chip Mounter Ys24
Qinyi Electronics Co., Ltd.- Condition：Used
- Speed：High Speed
- Precision：Precision
- Certification：ISO, CE
- Warranty：6 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：YS24
- Type：High-speed Chip Mounter
- Part No.：Ys24
- Lead Time：1-2 Weeks After Payment
- Shipping Ways：DHL, FedEx, TNT, UPS, EMS, by Sea, by Air
- Transport Package：Normal Packing
- Trademark：Yamaha
- Origin：Japan
- Production Capacity：50 PCS , Year
Description
Basic Info.
Model NO. YS24 Type High-speed Chip Mounter Part No. Ys24 Lead Time 1-2 Weeks After Payment Shipping Ways DHL, FedEx, TNT, UPS, EMS, by Sea, by Air Transport Package Normal Packing Trademark Yamaha Origin Japan Production Capacity 50 PCS / YearProduct Description

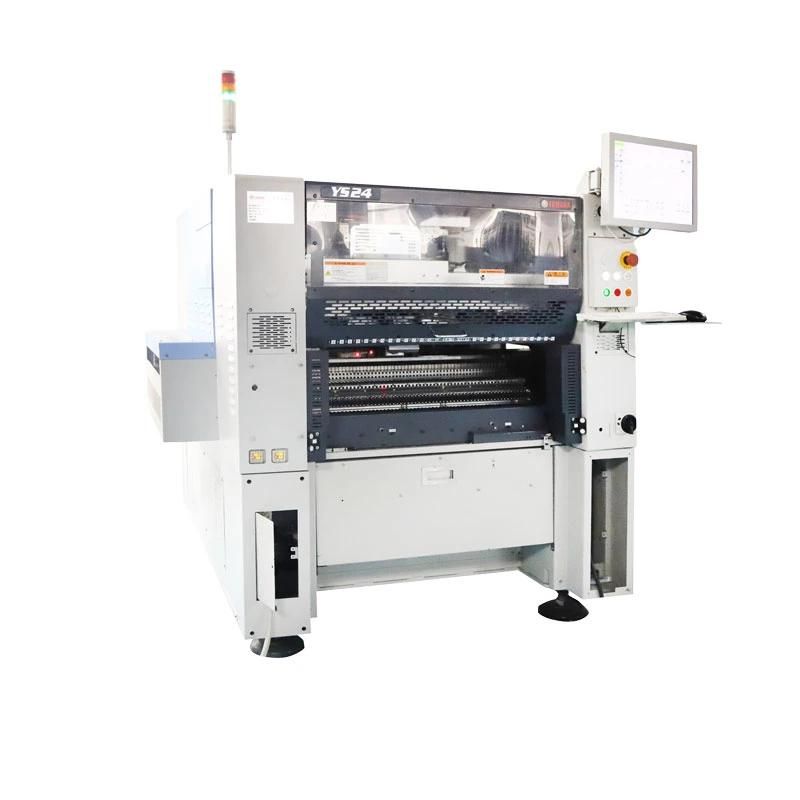

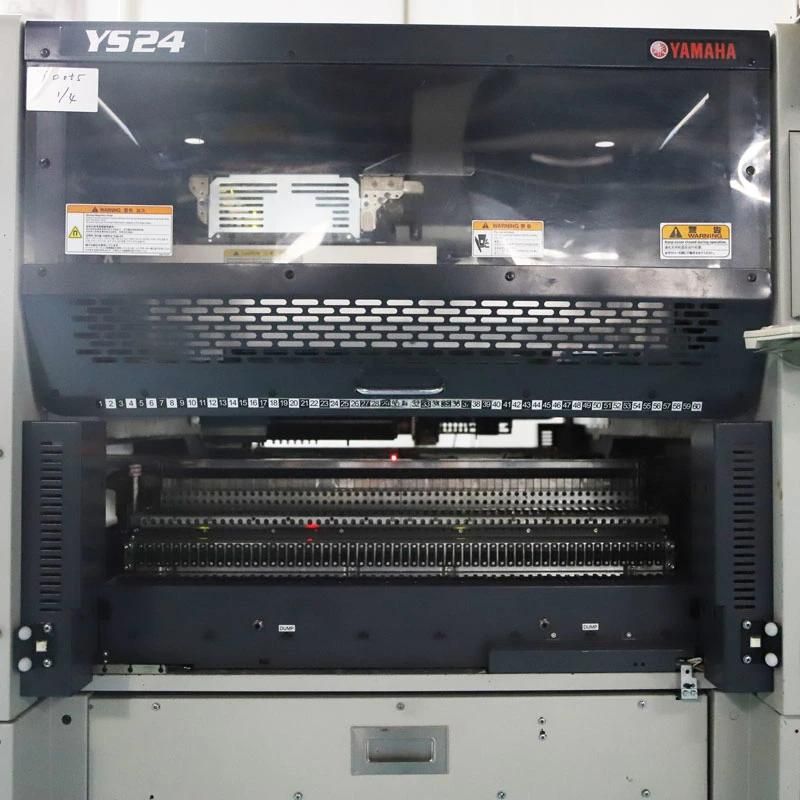

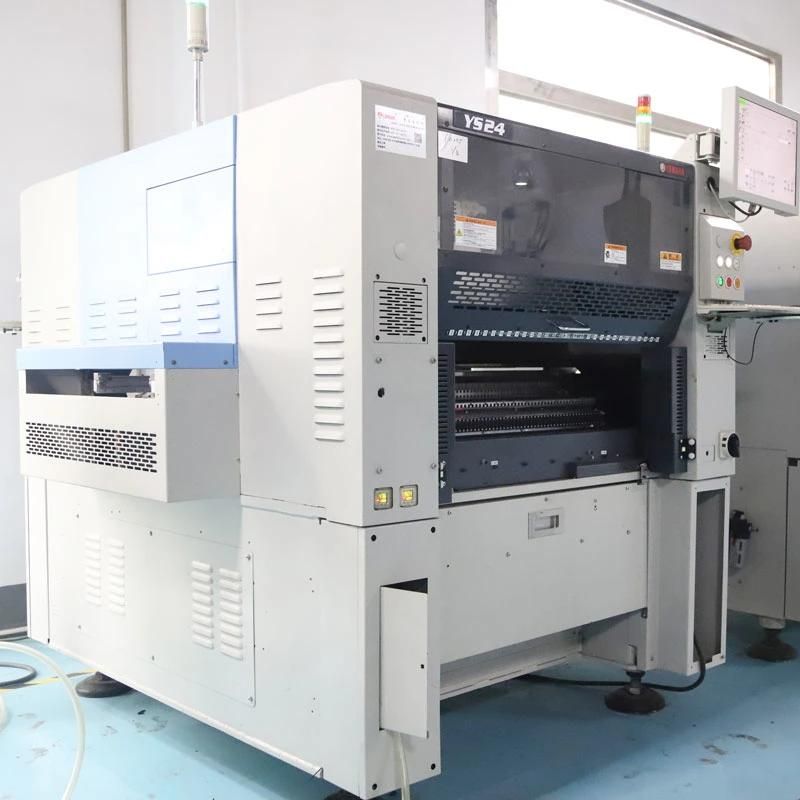

SMT pick and place machine Yamaha Chip Mounter YS24
| Model | YS24 |
| Applicable PCB | L700×W460mm to L50×W50mm |
| Mounting Capability | 72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor) |
| Mounting Accuracy | Absolute accuracy (μ+3σ) :+/-0.05mm/CHIP Repeatability (3σ) :+/-0.03mm/CHIP |
| Applicable Components | 0402 (Metric bases) to 32mm components (Height 6.5mm or less) |
| Component Types | 120 type (Max, 8mm tape reel conversion) |
| Power Supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air Supply Source | 0.45MPa |
| External Dimensions | L1,254 x W1,440 x H1,450mm (Excluding protrusions) |
| Weight | 1,700kg |
Download Details
Feature :
- 72,000CPH (0.05sec/CHIP)
Excellent mounting capability
Newly developed "Dual Stage Conveyor" - 34kCPH/
Area-productivity, top class in the world - L700 x W460mm
Super large PCB applicable - YAMAHA Dual Lane System applicable
- 120 Max feeder capacity
- 0402 to 32 x 32mm
Components applicable
