• Model NO.：TD3310
• Installation：Desktop
• Driven Type：Electric
• X Range：300mm
• Y Range：300mm
• Z Range：100mm
• Power Supply：220v
• Air Pressure：0-6kgf,Cm2
• Transport Package：Wooden
• Trademark：TORCH
• Origin：China
• HS Code：8424300000
• Production Capacity：400sets Per Year

Basic Info.

Model NO. TD3310 Installation Desktop Driven Type Electric X Range 300mm Y Range 300mm Z Range 100mm Power Supply 220v Air Pressure 0-6kgf/Cm2 Transport Package Wooden Trademark TORCH Origin China HS Code 8424300000 Production Capacity 400sets Per Year

Product Description

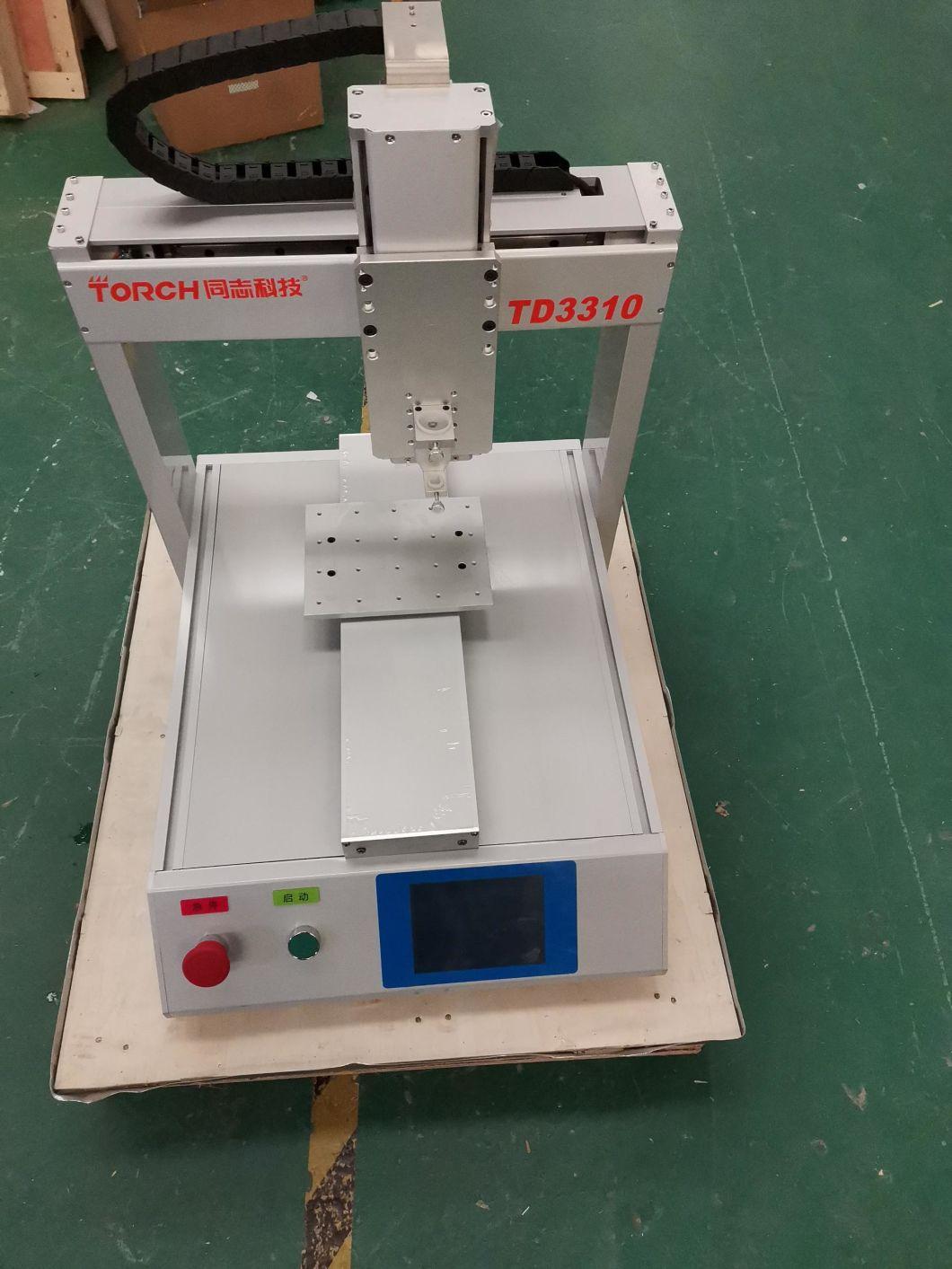

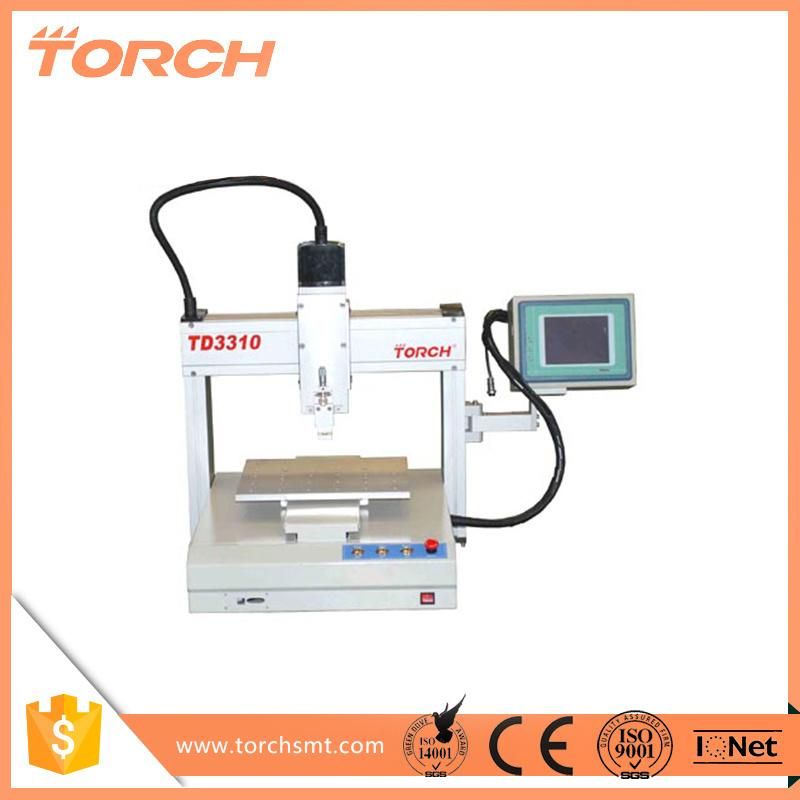

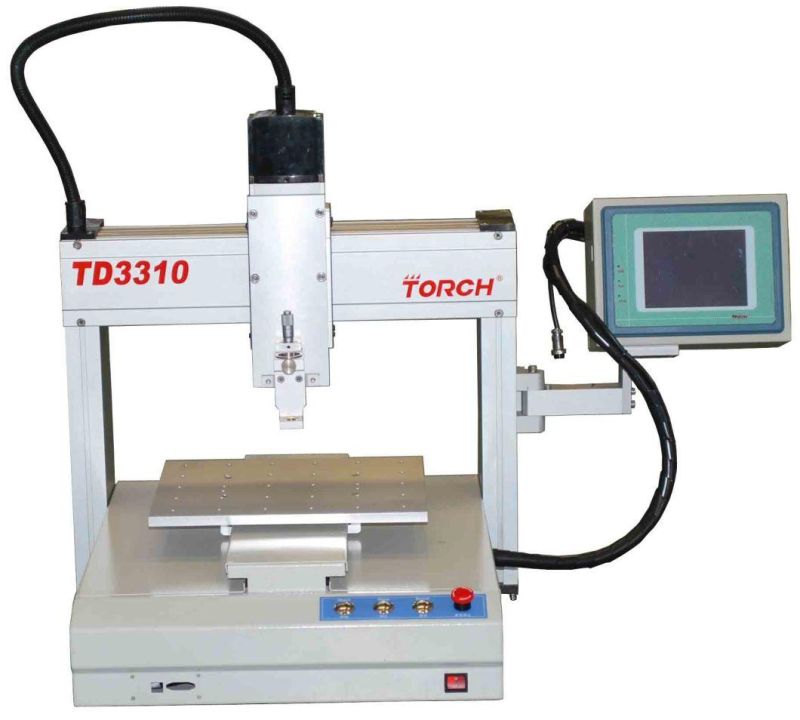

Automatic SMD LED Adhesive Glue Dispenser TD3310



Table three axes dispensers, which are universal electro-equipment, have been widely used in the fields of electro-element making, PCB assembly, wiring making, IC encapsulation, exact apparatus, biomedicine, light industry, packing, food and so on. Our products take advantage of variational and dispenser controlling technology and have the advantage of easy operation, stable fuction, and economical.

Structure:
Table three axes dispensers have the compact structure and beautiful exterior. They assist of Y axis variational controling panel, X and Z axis. It is convenient to control the process of dispenser with the touching-screen controller.

Remark:
1. Four axes control, high speed and precision, excellent dispenser and motility function
2. External Chinese touching screen controller easily to revise exactly, high quality, improve efficiency, convenient and reliable
3. The best price
4. Effective scope: X axis_300mm(could move to right or left) Y axis_300mm(the worktable could move forward or backward) Z axis_100mm(the head of the dispenser could move up or down)
5. The quickest speed: X axis_800mm/s Y axisY2axis_800mm/s Z axis_300mm/s
6. Repetition precision: ± 0.02mm
7. Drive method: Step motor laser & synchronous belt
8. Most bearing: Worktable_8kg, Z axis_3kg
9. Controlling method: Port to port, beeline and arc
10. Programme method: Touch screen control, PC program input
11. Program capacity: 100 programs/6000 ports
12. Power supply: AC220V
13. Air pressure: 0~6Kgf/cm2
14. Dimention: 760mm(L)*660mm(W)*640mm(H)
15. Weigh: About 45 Kg
16. Panel control; Start, reposite, sease
17. Programme interface: Chinese/English 5.7 inch touch screen instructing machine

Effective scope	X axis_300mm(could move to right or left)                    Y axis_300mm(the worktable could move forward or backward)                    Z axis_100mm(the head of the dispenser could move up or down)
The quickest speed	X axis_800mm/s                       Y axisY2axis_800mm/s                       Z axis_300mm/s
Repetition precision	±0.02mm
Drive method	step motor laser & synchronous belt
Most bearing	worktable_8kg , Z axis_3kg
Controlling method	port to port,beeline and arc
Programme method	touch screen control,PC program input
Power supply	AC220V
Air pressure	0~6Kgf/Cm²
Dimension	760mm(L)*660mm(W)*640mm(H)
Weight	about 45 Kg
Panel control	start,reposite,sease
