• Model NO.：TP210+
• Automatic Grade：Automatic
• Type：High-speed Chip Mounter
• Max Size of The PCB：350*210mm
• Speed of Mounting：2000-2800cph
• Component：SMD Capacitor and Resistor 0603 and IC (Below 20mm
• Short with Feeder：8mm, 12mm, 16mm, 24mm Feeder
• Quantity of IC Dick：1 PC
• Weight：350kg
• Size：780*850*450mm
• Transport Package：Wooden Package, 1 Set,Package, About 200kg
• Specification：CE ISO SGS
• Trademark：Termway
• Origin：China
• HS Code：8479896200
• Production Capacity：20,Month

Basic Info.

Model NO. TP210+ Automatic Grade Automatic Type High-speed Chip Mounter Max Size of The PCB 350*210mm Speed of Mounting 2000-2800cph Component SMD Capacitor and Resistor 0603 and IC (Below 20mm Short with Feeder 8mm, 12mm, 16mm, 24mm Feeder Quantity of IC Dick 1 PC Weight 350kg Size 780*850*450mm Transport Package Wooden Package, 1 Set/Package, About 200kg Specification CE ISO SGS Trademark Termway Origin China HS Code 8479896200 Production Capacity 20/Month

Product Description

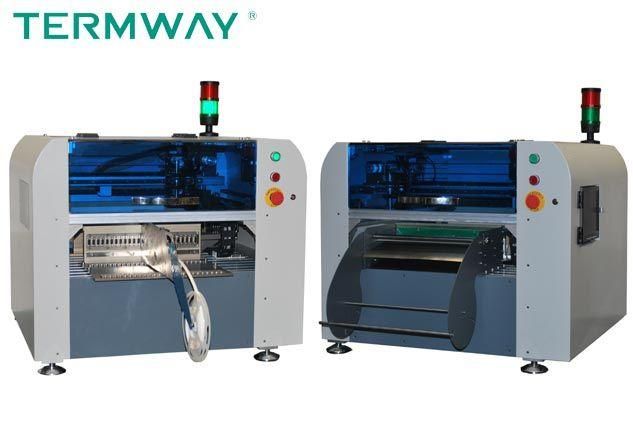

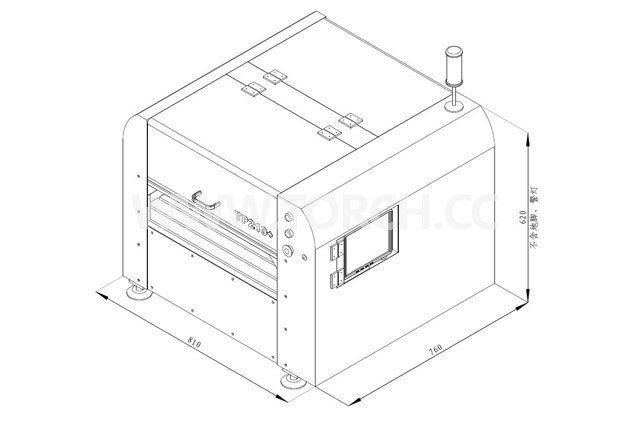

TORCH SMT Desktop Automatic Mounter Tp210+

The selling point:

1. Desktop automatic mounter with precision spare parts
2. High precision machine after annealing treatment, high frequency oscillation and natural aging
3Scraping movement planer makes the accuracy reach 0.01mm
4Precision level P guiderail ( repeatability of 0.02mm and good abrasion ressistance
5Patented mount moudel
6Electric intelligent feeder
7Chemical cromalin hardening process on PCB seat and feeder seat. ( SMC spare part
9The only one desktop mounter that can place 50 types of component
10Patented out-look design
11Powerful data import function, any formats of PCB file can be imported.
A new program can be finished in 10 minutes

12Software control system for placement, can match famous brand Siemens
13The desktop visional mounter with off- line programme function
14The one can realizes remotely maintain and analysis and inspection function

15The one and only automatic desktop visional mounter for 0402 and 0.5mm QFP
16Equips good quality industrial control computer
17Equips Tunableopticalgenerator to satisfy different colors for the identification of component
18Silence, noise never go upto 50 dB
19Actual speed: 3000cph
20Software reminds of maintainance period
21 LOGO is Stamp-formed


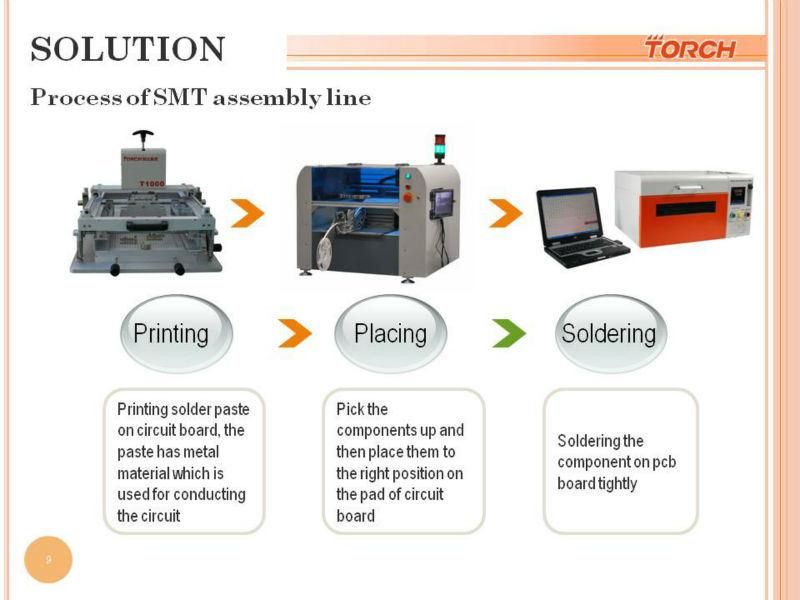

Product Introduction:
TP series is a fully automatic vision SMT pick and place machine, it can mount a variety of components through the vacuum nozzle. It is the most cost effective automatic placement equipment on recently market. This machine is suit for most of the SMD components, such as 0402, SOIC, PLCC and QFP IC; with the vision position system, meet the needs of mounting high precision 0.55mm of QFP IC or BGA. Beside the standard circle reference point, the square, which is not the PCB solder paste screen printing pad ring perforated pad, can also be as a reference point to know.
Features:
1. Cast structure, the bottom platform and Y-axis gantry structure uses casting process in SMT line, which effectively guarantee a reliability and stability for long-term use.
2. It uses high precision guides to improve placement accuracy.
3. High-resolution industrial camera to complete the visual position mount of high-precision components.
4. Vision system can automatically identify MARK point to improve production efficiency and chip placement accuracy.
5. Automatically visual programming without input device coordinates by hand. Programming is simple, easy for beginners to learn.
6. A small IC tray as standard configuration
7. 5 nozzle as standard configuration, the software will remind you to replace the nozzle.
8. Cost-effective automatic placement machine, it is most suitable for small scale production, research and personal use.

Optional accessories:
1. GF electric feeder (CF type as alternative models suitable for low-cost production and R&D use)
2. Nozzle

Model	TP300V
PCB board size	350× 210mm
Max moving range	410× 320mm
Max moving range of Z axis	10mm
Typical Mounting speed	2000-2800cph
Max mounting speed	3000 cph
Repeating  accuracy	± 0.1mm
Position	Visional Position
Component available	SMD capacitor and resistor 0603 and  IC (below 20mm)
Programme	Video study/ Keyboard input
Driving method	Use industrial synchronously driving belt
Belt feeder	Feeder 8mm, 12mm, 16mm, 24mm optional

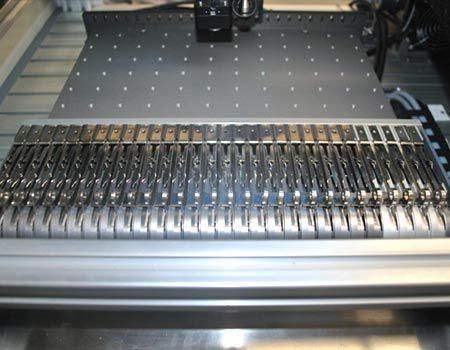

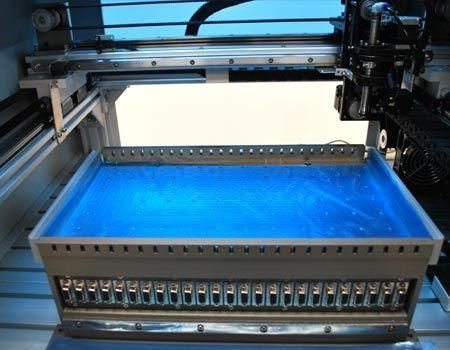

Feeder number	Can place max 48pc of 8MM   GFTA-08S 1, 24 pcs of 8MM GFTA-08S at left side 2, 22 pcs of 8MM GFTA-08S at right side(when no IC tray)
IC tray num	1 at most, in the situation, TP300V just can place 24 pcs of 8MM GFTA-08S feeder
Operation system	WINDOWS    XP
Compressed air	80psi(0.5Mpa), air flow 80L/M
Power supply	220v, 50Hz, 2kw
Weight	350kg
Dimension	780× 850× 450mm
