Rectangle Wire Forming Machine Armature Coil Winding Machine
Shanghai Wind Automation Equipment Co., Ltd.- Warranty：12 Months
- Color：Customized
- After-Sales Service：Engineers Avaiable to Service Overseas
- Condition：New
- Customized Service：Provided
- Transport Package：Wooden Case
Base Info
- Model NO.：WIND-AWF-F
- Specification：Middle Size
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-AWF-F Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description
Rectangle Wire Forming Machine Armature Coil Winding Machine
This forming machine produces conductor for starter armature bare wire without enamel. It can automatically turn single bare copper wire into conductor. During forming, one operator is quite enough to operate this machine.
(1)Specifications
| Power Supply | AC220V±10% 50Hz |
| Air Pressure Supply | 0.5~0.7Mpa |
| Rated Capacity | 2KW |
| Varnish Removing Length | 0~50mm |
| Productivity | 2.3s/pc |
| Feeding length | 150~400mm |
(2) Application

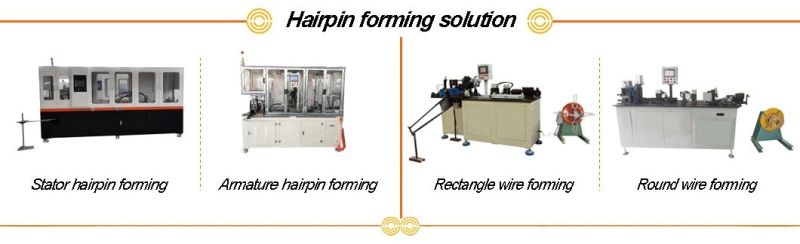

Suitable for starter motor, aerospace motor armature to do hairpin coil forming.
(3) Features
Suitable for flat wire
High efficiency, automation and productivity, 25pcs/min
Mitsubishi PLC control, colorful touching screen
Capable of producing conductor with customized twisting angle
One operator is quite enough to operate this machine
