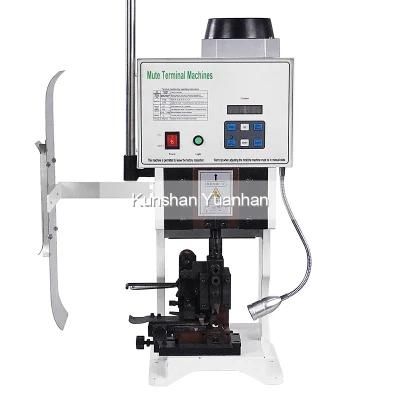

Sheathed Rvv BVVB Inner Core Wire Cutting Stripping and Terminal Crimping Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24h
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Semiautomatic

Base Info

  • Model NO.：YH-68211
  • Model：Yh-68211
  • Function：Inner Core Wire Cutting, Stripping and Terminal C
  • Power Supply：110,220VAC,50,60Hz
  • Power：750W
  • Speed：700-800 Pieces,Hour (6 Cores)
  • Jacket Strip Length：Shortest 40mm (8 Cores)
  • Strip Length of Inner Core：1-7mm (7-10mm Customizable)
  • Number of Inner Conductors：1-12 Cores
  • Inner Core Single Wire Diameter：5 Cores:Min.0.75mm; 8 Cores:Min.0.5mm;
  • Pressure：200kn,2t
  • Weight：85kg
  • Dimension：40*60*135mm
  • Mold Type：Horizontal Die Continuous Terminal (Straight Mold
  • Remark：Cannot Process Teflon and Silicon Wires
  • Transport Package：Carton,Wooden Case
  • Specification：22*25*60cm
  • Trademark：YH
  • Origin：China
  • HS Code：8479819000

Description

1-12 coresInner core single wire diameter

5 cores:min.0.75mm;

8 cores:min.0.5mm;

12 cores:min.0.3mm;

Pressure200KN/2TWeight85kgDimension40*60*135mmMold typeHorizontal die continuous terminal (straight mold customizable)RemarkCannot process teflon and silicon wires



Machine shows

Sheathed Rvv BVVB Inner Core Wire Cutting Stripping and Terminal Crimping MachineSheathed Rvv BVVB Inner Core Wire Cutting Stripping and Terminal Crimping Machine
Sheathed Rvv BVVB Inner Core Wire Cutting Stripping and Terminal Crimping MachineSheathed Rvv BVVB Inner Core Wire Cutting Stripping and Terminal Crimping MachineSheathed Rvv BVVB Inner Core Wire Cutting Stripping and Terminal Crimping Machine
Sheathed Rvv BVVB Inner Core Wire Cutting Stripping and Terminal Crimping MachineSheathed Rvv BVVB Inner Core Wire Cutting Stripping and Terminal Crimping Machine
More modelsSheathed Rvv BVVB Inner Core Wire Cutting Stripping and Terminal Crimping Machine





Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden




for Sale Small Size Automatic Computer Electrical Electric Cable Stripper Machine Wire Cutting Stripping Machine


Any questions, please feel free to contact us ! Thank you !
