Horizontal Type Stator Coil Winding Inserting Machine
Shanghai Wind Automation Equipment Co., Ltd.- Warranty：12 Months
- Color：Customized
- After-Sales Service：Engineers Avaiable to Service Overseas
- Customized Service：Provided
- Transport Package：Wooden Case
- Specification：Middle Size
Base Info
- Model NO.：WIND-CWH
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-CWH Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description
Horizontal Type Stator Coil Winding Inserting Machine

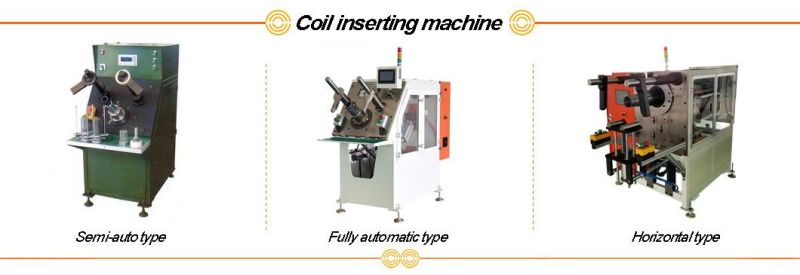

Wind Automation offers customized service for stator coil inserting machine. Besides horizontal type, we also supply standard type, semi-auto type, auto type.
(1) Feature
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required
(2) Specification
| Stator ID | 60~150mm |
| Stator OD | Max 210mm |
| Stack length | Max 190mm |
| Tooling stroke | Max 90mm |
| Suitable wire material | Copper/Aluminium wire |
| Slot number | 24~48slots |
| Power supply | 380V 50/60HZ |
| Weight | 1050KG |
| Dimension | 2380x1180x1700mm |
(3) Application
This type of machine is suitable for large and medium-sized AC motor, induction motor stators.
