Economic Type Stator Coil Inserter Winding Inserting Machine
Shanghai Wind Automation Equipment Co., Ltd.- Warranty：12 Months
- Color：Customized
- After-Sales Service：Engineers Avaiable to Service Overseas
- Customized Service：Provided
- Transport Package：Wooden Case
- Specification：Middle Size
Base Info
- Model NO.：WIND-90-CWI
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-90-CWI Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description

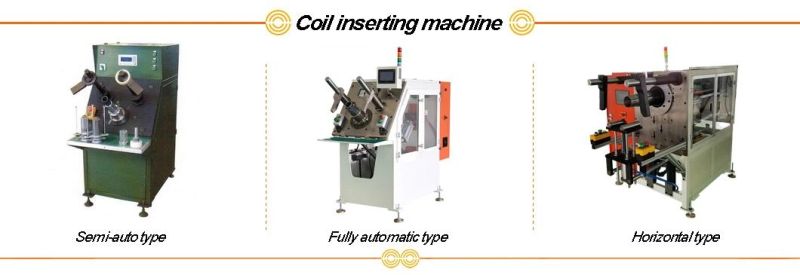

Economic Type Stator Coil Inserter Winding Inserting Machine
This machine is suitable for stator coils both copper wire and aluminium wire to do coil insertion process. It covers wide range, suitable for stator with 8 to 48 slots.
(1) Feature
Wide application
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required
(2) Application
This type of machine is suitable for various types of AC motor, induction motor stators.
(3) Specification
| Stack length | Max 120mm |
| Stator ID | 20~100mm |
| Stator OD | Max 160mm |
| Tooling stroke | Max 70mm |
| Suitable wire material | Copper/Aluminium wire |
| Slot number | 8~48slots |
| Power supply | 380V 50/60HZ |
| Weight | 850KG |
| Dimension | 1850x650x1700mm |
