Double End Servo Motor Stator Winding Lacing Machine for Compressor Motor Coil Binding
Ningbo Nide Mechanical Equipment Co., Ltd.- Min. Stator ID：30mm
- Max. Stator Od：190mm
- Over-Hang Height：Max 40mm
- Stator Stack Length：50-130mm
- Pitch Time：Max 1s ,Slot
- Power Supply：380V,50,60Hz
Base Info
- Model NO.：BXSIIL1-160-160-6B
- Power：3.5kw
- Dimension：L1500*W650*H1700mm
- Weight：About 600kg
- Transport Package：Ply-Wooden Case
- Specification：customized
- Trademark：NIDE
- Origin：China
- HS Code：8479899990
- Production Capacity：50sets,Year
Description
Min. stator ID
33mm
Max. stator OD
150mm
Over-hang height
15~48mm
Stator stack length
15~120mm
Pitch time
About 0.5~0.7sec/slot
Power supply
380V/50/60Hz
Air pressure
0.5~0.8MPa
Power
3KW
Dimension
1570 x 670 x 1680mm
Weight
About 900kg
Applications:
The automtaic stator coil lacing machine is suitable for lacing the oven-hang of the induction motor stator. It is used for stator which meets the specification of below.
Competitive advantages:
Fast speed , low noise; simple operation and easy tooling change, double sides lacing simultaneously. PLC and touch screen control, it's programmable.

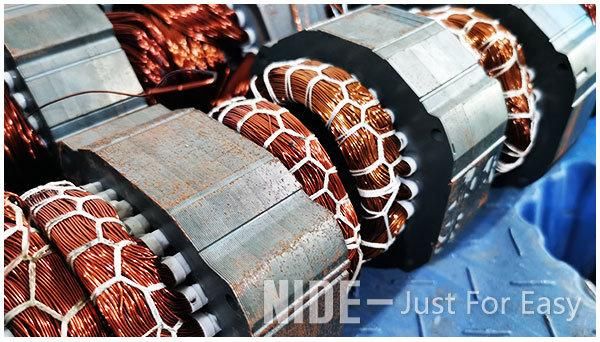

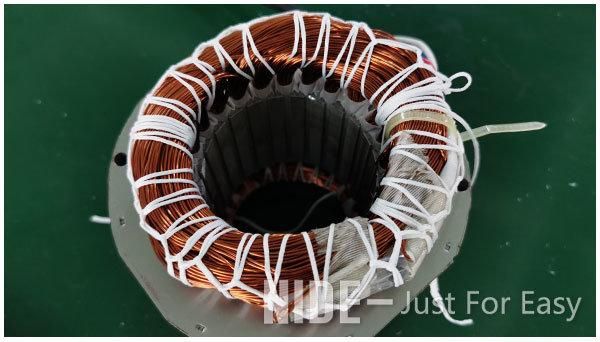

Picture show:
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .
3. Engineers available to service overseas
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
