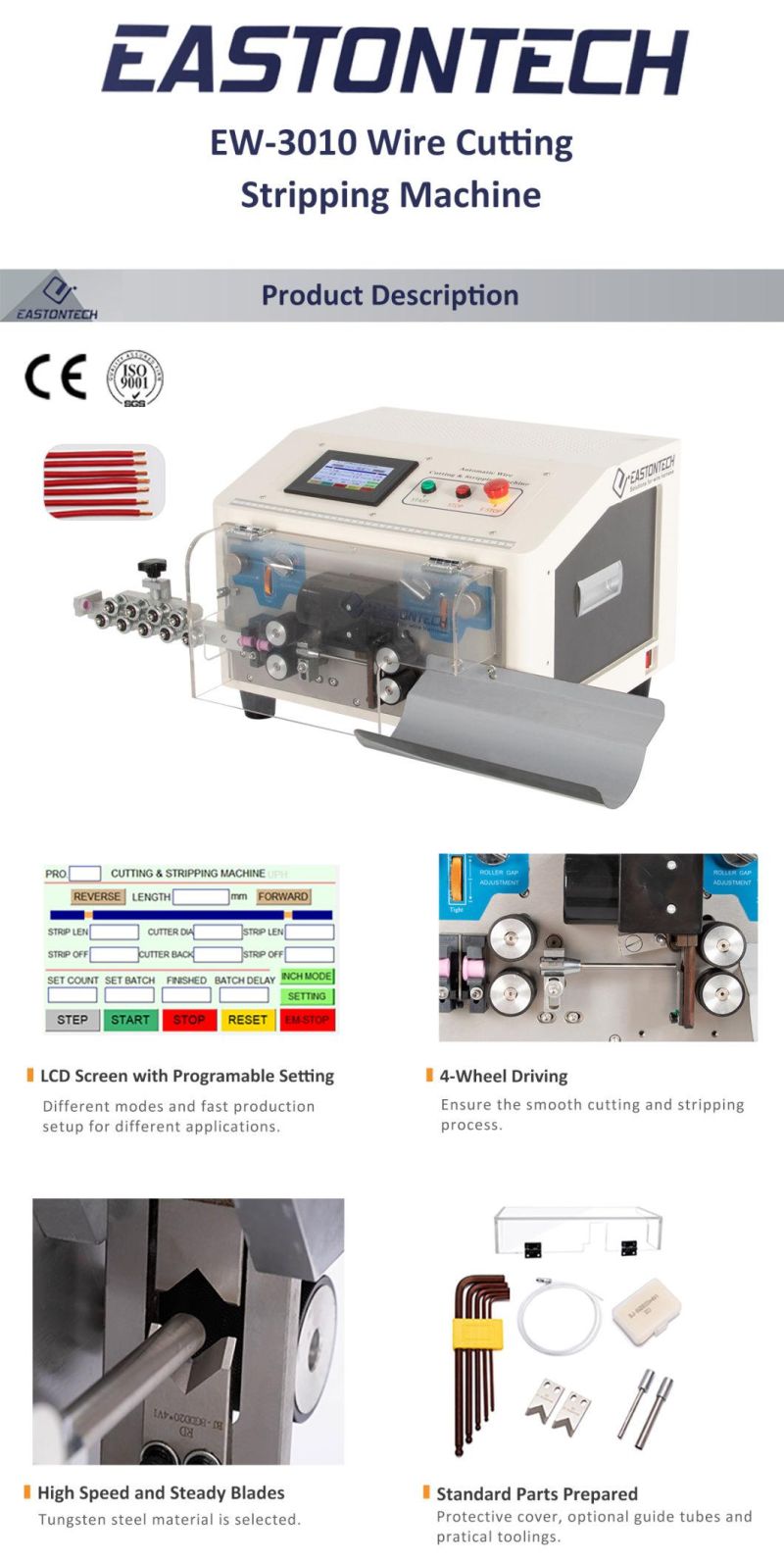

Factory Cable Equipment Wires Stripping Machine 0.1-6mm Square Meter Wire Cut Machine
Wenzhou East World Automation Equipment Co., Ltd.- After-sales Service:1 Year Guarantee
- Driven Type:Electric
- Condition:New
- Certification:ISO, CE
- Warranty:12 Months
- Automatic Grade:Automatic
Base Info
- Model NO.:EW-3010
- Function:Wire Cutting, Double-End Stripping, Middle Strip
- Wire Range:0.1-6mm2(AWG30-12)
- Cutting Length:0.1mm-99999.9mm
- Stripping Length:Stripping Head:0.1-250mm Stripping Tail: 0.1-70mm
- Stripping Accuracy:Silent Hybrid Stepper Motor 0.01mm
- Intermediate Strip:16 (Can Be Customized)
- Capacity:3000-8000 , H
- Blade Material:Imported Tungsten Steel , High Speed Steel
- Power:AC110V,220V 50,60Hz
- Dimension:470mm * 450mm * 350mm
- Weight:31 Kg
- Remark Function:Automatic Entry Exit, Timing Start, Jog Adjustment
- Transport Package:Export Wooden Case
- Specification:55*59*46cm
- Trademark:EASTONTECH
- Origin:China
- HS Code:8479899990
- Production Capacity:1000set,Month
Description
Basic Info.
Model NO. EW-3010 Function Wire Cutting, Double-End Stripping, Middle Strip Wire Range 0.1-6mm2(AWG30-12) Cutting Length 0.1mm-99999.9mm Stripping Length Stripping Head:0.1-250mm Stripping Tail: 0.1-70mm Stripping Accuracy Silent Hybrid Stepper Motor 0.01mm Intermediate Strip 16 (Can Be Customized) Capacity 3000-8000 / H Blade Material Imported Tungsten Steel / High Speed Steel Power AC110V/220V 50/60Hz Dimension 470mm * 450mm * 350mm Weight 31 Kg Remark Function Automatic Entry Exit, Timing Start, Jog Adjustment Transport Package Export Wooden Case Specification 55*59*46cm Trademark EASTONTECH Origin China HS Code 8479899990 Production Capacity 1000set/MonthProduct Description
Model | EW-3010 |
Function | Wire cutting, double-end stripping, middle stripping |
Wire range | 0.1-6mm2(AWG30-12) |
Cutting length | 0.1mm-99999.9mm |
Stripping length | Stripping head:0.1-250mm Stripping tail: 0.1-70mm |
Stripping accuracy | Silent hybrid stepper motor 0.01mm |
Intermediate strip | 16 (can be customized) |
Capacity | 3000-8000 / h |
Blade material | Imported tungsten steel / high speed steel |
Power | AC110V/220V 50/60HZ |
Dimension | 470mm * 450mm * 350mm |
Weight | 31.5kg |
Remark function | Automatic entry / exit, timing start, jog adjustment |
