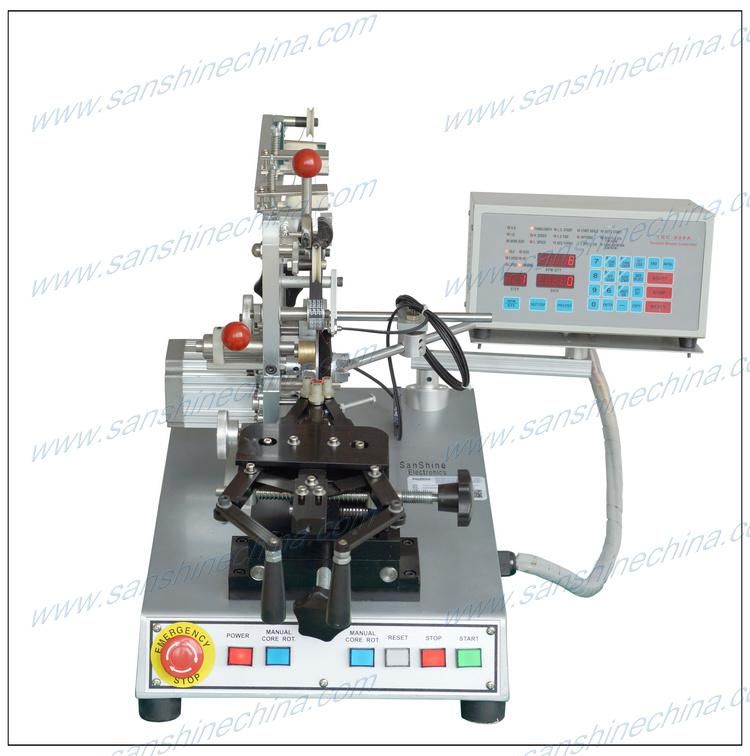

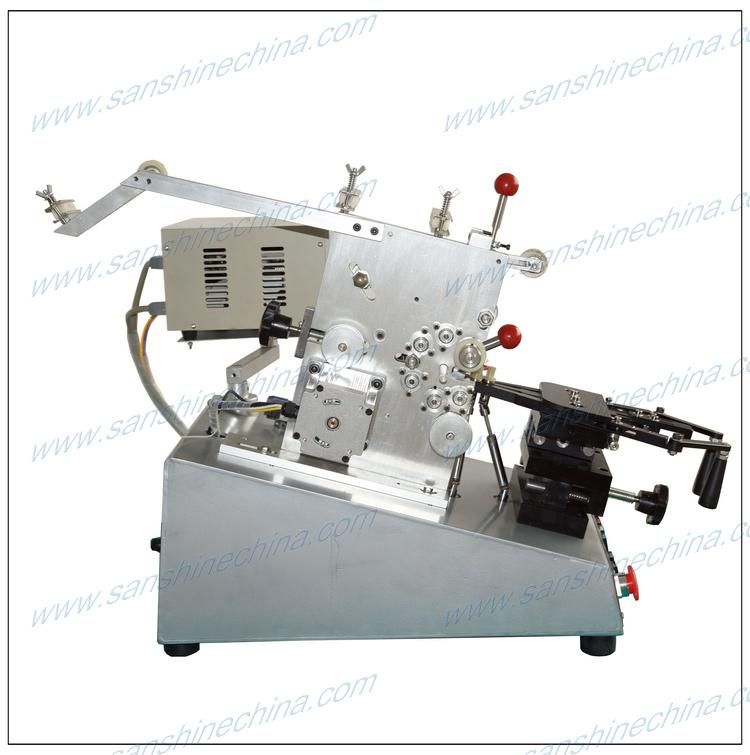

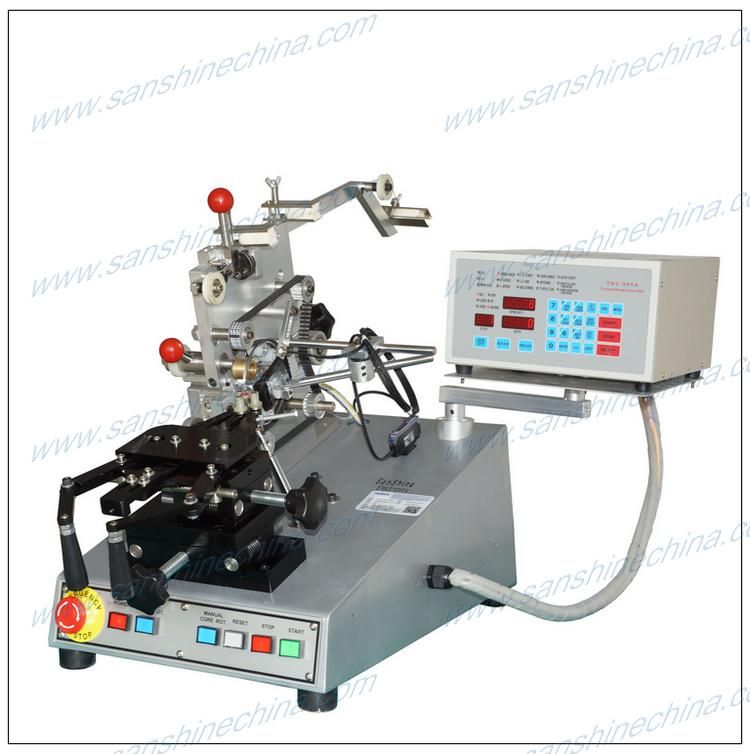

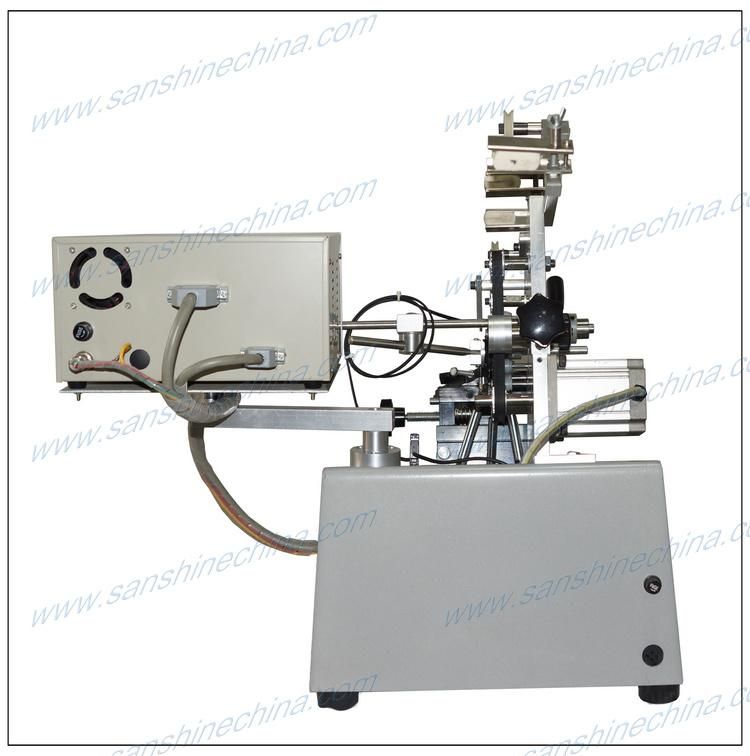

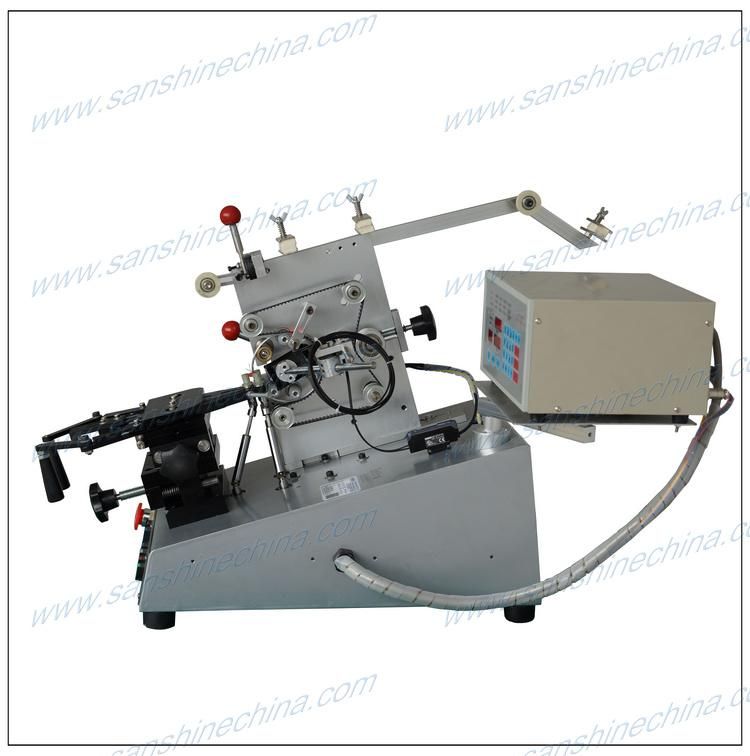

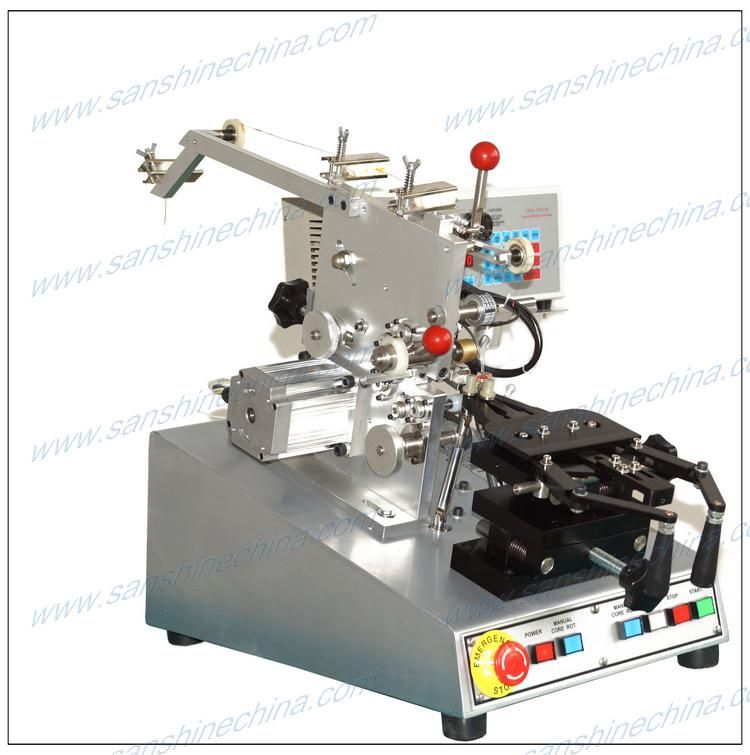

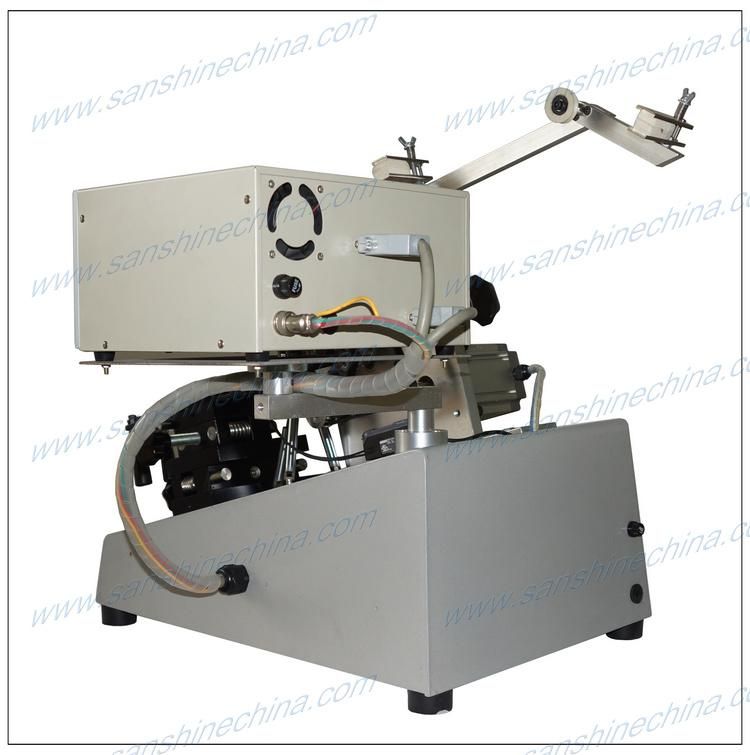

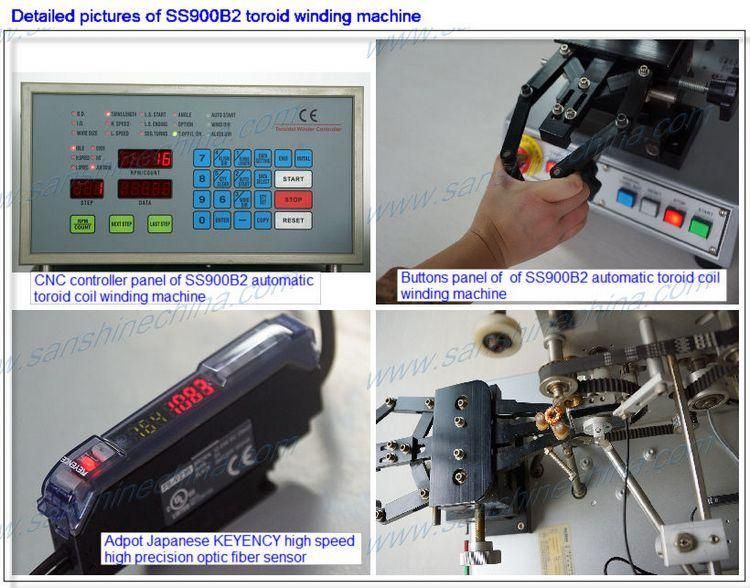

Mini Type Automatic Toroid Coil Winding Machine (SS900B2)
SanShine Electronics (Xiamen) Technology Co., Ltd.- Warranty：12 Months
- Copper Wire Diameter：0.07~1.5mm
- Min. Finished ID：2.5mm
- Finished Od Range：5~150mm
- Max. Speed：1200rpm
- How to Make Chip Toroid Coil：Use Mini Type Toroid Coil Winding Machine
Base Info
- Model NO.：SS900B2
- How to Make SMT Toroid Coil：Use Mini Type Toroid Coil Winding Machine
- How to Make SMT Toroid Inductor：Use Mini Type Toroid Coil Winding Machine
- How to Make Toroid SMT Transformer：Use Mini Type Toroid Coil Winding Machine
- How to Make SMD Toroid Coil：Use Mini Type Toroid Coil Winding Machine
- Demoulding：Pull Core
- Condition：New
- Certification：ISO, Internal
- Automatic Grade：Automatic
- Installation：Desktop
- Driven Type：Electric
- Function：High Precision and Steady
- Mould Life：Depend on The Wire Diameter
- Transport Package：Customs approved wood box
- Specification：SanShine
- Trademark：SanShine
- Origin：China
- HS Code：8479811000
- Production Capacity：10000,Set
Description

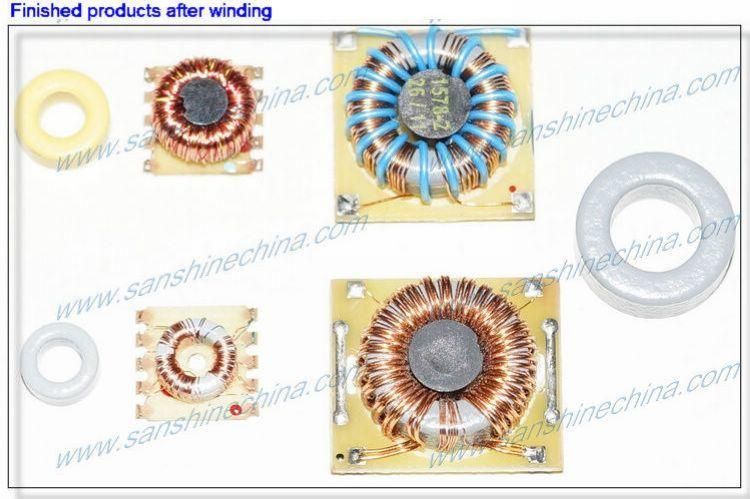

The SS900 series automatic toroid coil winding machine include SS900B series and SS900S series.The SS900B series digital automatic toroid winding machine adopts CNC toroid controller,it is belt type winding shuttle.belt type is used for the thick copper wire winding. It's an accurately and reliability digital toroid-winding machine.is used for toroidal inductor,toroidal transformer,toroidal current transformer,toroidal current sensor,toroidal coil,toroid chock coil, power inductors,power magnetics,UPS inductor,converter inductors,watter metter sensors,toroid current transformer of electronic watter-hour meter, power factor corrector toroid coil, etc.
Features :
1. Collocate belt type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification :
Copper wire diameter: 0.07~1.5mm(will be different by different machine model,different shuttle size).
Min. Finished ID: 2.5mm (will be different by different machine model,different shuttle size and coil height).
Finished OD range: 5~150mm(will be different by different machine model,different shuttle size and coil height. )
Max. Speed: 1200RPM
Winding motor: 1/2HP DC brushless motor
Spread motor: Stepping motor
Memory capacity: 999 steps
Power source: AC220V /110V +10%, 50/60 Hz
Dimension: L60x36x60(cm)
Net weight: 40Kgs
SS900B8How to select the best suited automatic toroid coil winding machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1. toroid core outside diameter before winding?
2. toroid core inside diameter before winding?
3. toroid core height before winding?
4. how many windings on this core?
5. how many turns of each winding?
6. how about the copper wire diameter of each winding?
7. provide pictures of product which is better.
