• Model NO.：WG-25T
• Power Consumption：Min.20W-Max.380W
• Funtaion：Crimping
• Wire Size：10-100mm
• Other：Non-Replacement
• Stroke：350
• Transport Package：Wooden Case
• Specification：600*440*380mm
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-25T Power Consumption Min.20W-Max.380W Funtaion Crimping Wire Size 10-100mm Other Non-Replacement Stroke 350 Transport Package Wooden Case Specification 600*440*380mm Trademark wingud Origin China Production Capacity 120/Month

Product Description

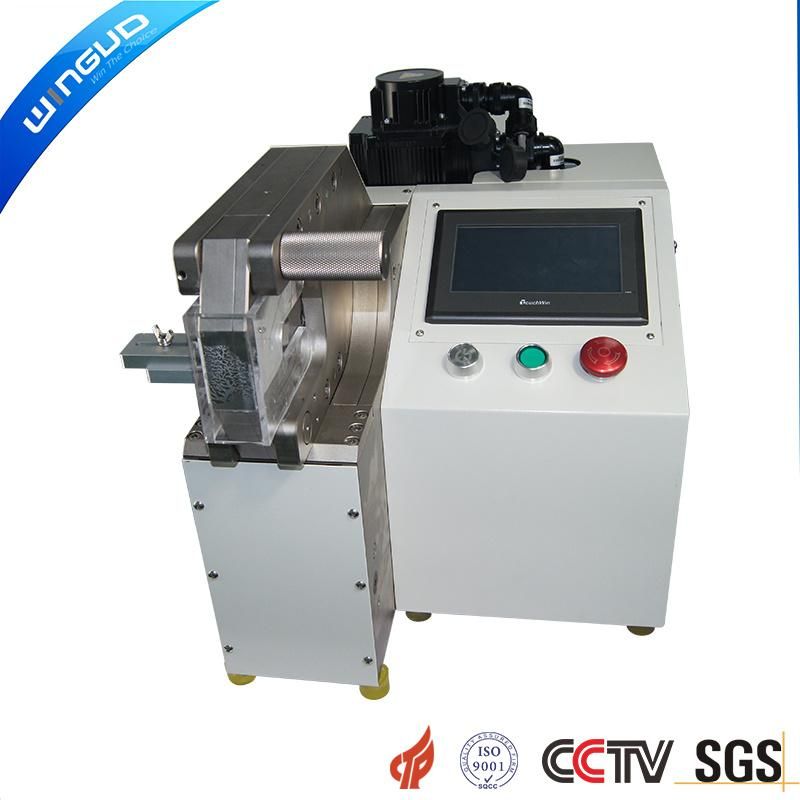

 WG-25T Characteristics

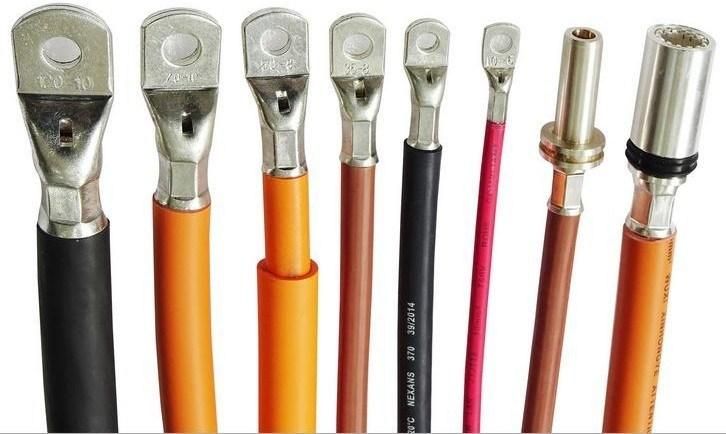

1. This machine is mainly for the crimping of large square tubular terminals;
2. Industrial-level Control Chip with High-precision Servo drive, so that the machine can operate stably;
3.PLC Control system, instantly change the crimp range of different terminals, touchScreen operationWay
4.10-120 mm² Closed Tubular Terminal crimping No need to replace the crimp die, instantly change the size of the blade;
5.Suitable for non-standardized terminals or Crimp type TerminalsCrimping operation;
6.No mold change, High accuracy
7. Press fitting can be completely opened, suitable for intermediate or large square terminal crimp
8. The actual square number of the wire can be adjusted position;
9.Compact structure, space-saving,

1.Line diameter range:10-120mm² (min:awg10#,240 Square can be customized)
2.Pressure:200KN
3.Stroke:350mm
4.Crimp Width: 12.5mm ( can be customized)
5.Weight:120KG
6.Size:500*450*480mm
7.Power:220v50hz
