• Model NO.：WG-251
• Application Range：5mm~30mm
• Transport Package：Wooden Case
• Specification：700*580*450mm
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-251 Application Range 5mm~30mm Transport Package Wooden Case Specification 700*580*450mm Trademark wingud Origin China Production Capacity 120/Month

Product Description

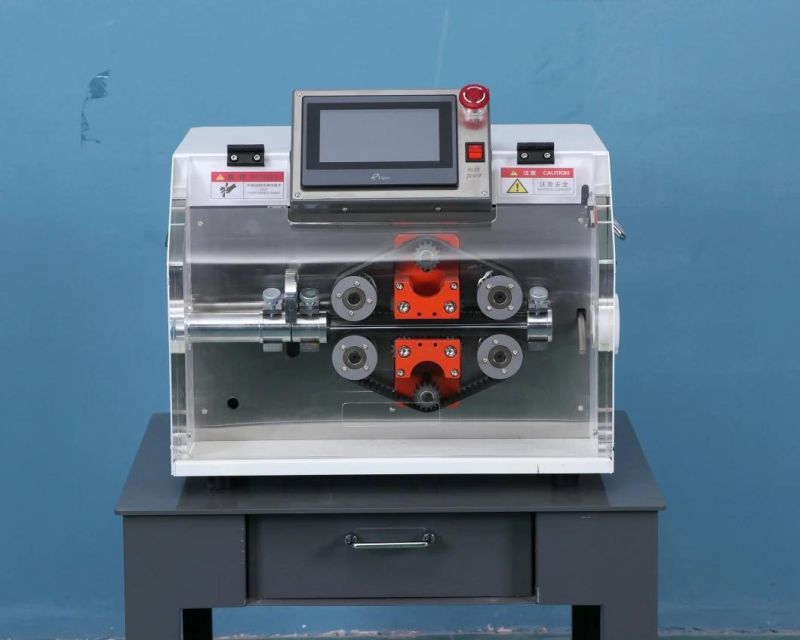

Full-Automatic Computer Corrugated Tube/Bellow Cutting Machine WG-251
Functional characteristics:This automatic computerized pipe cutting machine is using high speed microprocessor which developed and designed specially for bellows of automobile wiring harness industry with high precision PLC control and easy to understand operation. It can be used for cutting round plastic hose, bellows, has high processing efficiency, is stable and reliable, using step-motor feeding with characteristics of feeding stability and accurate length. It is using the integrated circuit with stable control and simple maintenance, touch screen with all kinds of data at a glance.


• Work voltage 212V~232V

• Rated frequency 50Hz

• Limit operating voltage 202V~240V

• Rated Current 7A~15A

   Technical Parameters:

Item	Parameter
Model	WG-251
Power supply	220V 50/60Hz
Power	500W
Cutting length	0.1-9999.9mm
Cutting accuracy	±1% of cutting length
Cutting diameter	5mm~30mm
Cutting speed	60~110times/minute
Speed	L=100mm,100PCS/Min
Weight	71 Kg
Dimension	700*580*450
