• Model NO.：WG-02A
• Application Range：AWG18-AWG32
• Stripping Length：0-7mm
• Cutting Length：10-400mm
• Twisting Length：3~7mm
• Wetting Length：0.5~7mm
• Transport Package：Wooden Case
• Specification：1210*770*1370MM
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-02A Application Range AWG18-AWG32 Stripping Length 0-7mm Cutting Length 10-400mm Twisting Length 3~7mm Wetting Length 0.5~7mm Transport Package Wooden Case Specification 1210*770*1370MM Trademark wingud Origin China Production Capacity 120/Month

Product Description

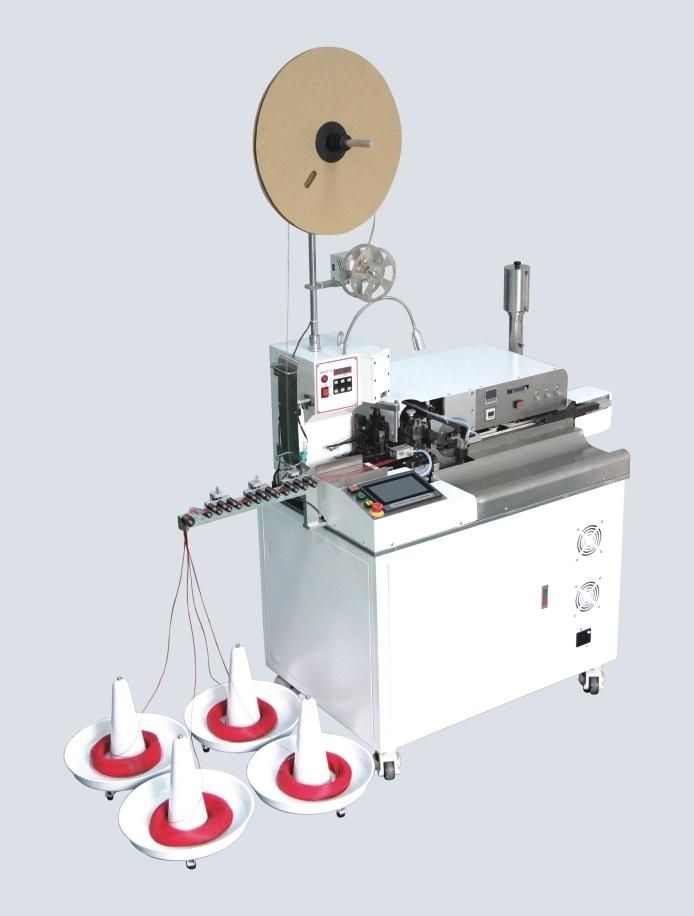

WG-02A Full-automatic one-end Terminal Crimping And Wetting Machine
Functional characteristics:

1. Servo + step control: 3 sets of servo (Panasonic) + 4 sets of stepper motor (RCON)
2. Pneumatic element: solenoid valve + air cylinder (SMC)
3. Pressure testing SMC
4. Wire rails: Taiwan HIWIN
5. Controller: America RAM
6. Color touch screen: KINCO (Taiwan)
7. Full computer control debugging: Size of the blade, stripping length, crimping depth,   wetting depth

 Technical Parameters:Dimension: 1210*770*1370MM (prominence not included)
Processing capacity:Wire cutting, single end peeling, double end peeling, single end half stripping, single end twisting, single end wetting
Control Method: 32 bit Chinese microcomputer system
Productivity: 6000~8000PCS/h (depends on the length of the wires)
Application range: AWG18-AWG32
Stripping length: 0-7MM (customizable for length over 7MM)
Cutting length: 10-400MM (the shortest 8MM is customizable)
Cutting Accuracy: 0.2±0.02*L (length)
Twisting length: 3~7MM
Wetting length: 0.5~7MM
