• Model NO.：TD2000D
• Driven Type：Electric
• Weight：5kg
• Pressure：0.4-0.7mpa
• Power Supply：220v
• Function：Dispenser The Solder Paste
• Transport Package：Carton
• Specification：Pedestal and Pin Head
• Trademark：TORCH
• Origin：China
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. TD2000D Driven Type Electric Weight 5kg Pressure 0.4-0.7mpa Power Supply 220v Function Dispenser The Solder Paste Transport Package Carton Specification Pedestal and Pin Head Trademark TORCH Origin China Production Capacity 10 Sets Per Month

Product Description

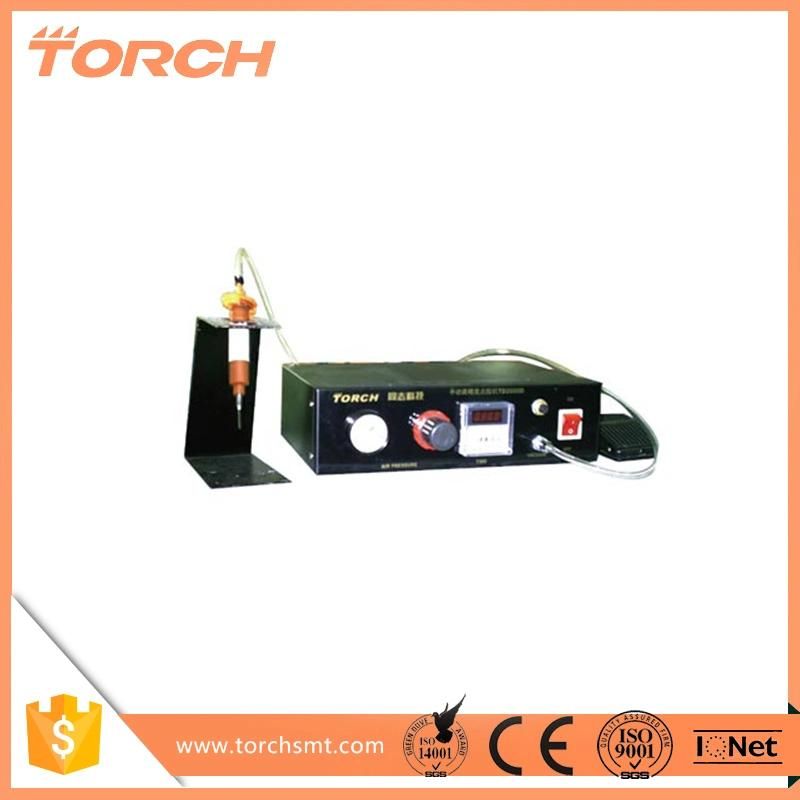

SMT Dispenser / PCB Soldering Paste Dispenser (TD2000D)



Product Description:
Manual High Precision Dispenser TD2000 control the size of the colloid though adjust the press of the pin tube, the time of drop glue, and the size of pinhead. After the three factors are settled, it will drop equal glue liquid(<± 0.1%) by footplate switch.
It could gelatinize as well. It means that it could control the quantity and shape of the glue by open and close the switch to satisfy special demands.

Technique parameter:

Introduction:
Manual High Precision Dispenser TD2000 control the size of the colloid though adjust the press of the pin tube, the time of drop glue, and the size of pinhead. After the three factors are settled, it will drop equal glue liquid(<± 0.1%) by footplate switch.
It could gelatinize as well. It means that it could control the quantity and shape of the glue by open and close the switch to satisfy special demands.

Remark:

Easy operation
B, Various functions. Manual dispenser could not only daub glue but daub solder paste. In the experiments it save cost and ensure the quality.
C, Power supply: 220V
D, Gas supply: 0.4~0.7MPa
E, Standard Collocation: 0ne host computer, one pedestal, and six pinheads(different apertures)

Model	TD2000D
Gas supply	0.4~0.7MPa
Power supply	220V
Standard Collocation	0ne host computer, one pedestal, and six pinheads(different apertures
