• Model NO.：WG-880
• Power Consumption：Min.20W-Max.380W
• Funtaion：Cutting, Stripping
• Wire Size：AWG#12-AWG33#
• Transport Package：Wooden Case
• Specification：600*440*380mm
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-880 Power Consumption Min.20W-Max.380W Funtaion Cutting, Stripping Wire Size AWG#12-AWG33# Transport Package Wooden Case Specification 600*440*380mm Trademark wingud Origin China Production Capacity 120/Month

Product Description

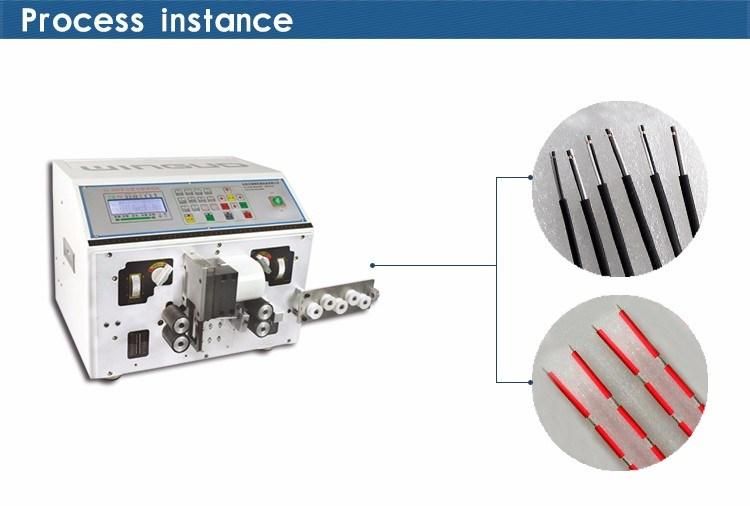

          WG-880 Multi-Function Computer Wire Cutting and Stripping Machine

Characteristics
(1). It adopts the newest 32bit core processor of Cortex-M3, the running speed is 72M of a single cycle.
(2). 5pcs of pulse output up to100K,the form of pulse is "pulse+direction", open-collector output, output current can be up to 200mA.
(3). 7pcs of high-speed enter point. Response time is less than 2uS.
(4). 4pcs of collector sets open circuit output, current output is 5A.
(5). Board integrated with the standard communication interface of RS485 and equipped with the communication protocol of Modbus RTU, can easily communicate with various bands of touchscreen, the format of communication data is 38400,8,n,1.
(6). Board configured drive power rectifying circuit of stepper drive, can provide drive current of 15A for the driver, make the circuit wire of the machine is easier. The rectifying circuit stop to output under the machine stop work, you can adjust the mechanical parts under constant electric.
(7). Equipped with large capacity storage, can save 100 groups of parameters at the same time, easy for operators to operate.
