• Model NO.：GZR-1100
• Center Height (mm)：850
• Max Center Distance of Spindle (mm)：1150
• Max Working Torque N.M：200
• Winding Speed (Rpm)：0--200
• Outer Dia (mm)：700
• Coil Height (mm)：1100
• Max Coil Weight (Kg)：500kg
• Machine Power (Kw)：6
• Flat Wire(mm)(Max)：3*12
• Transport Package：Standard
• Specification：6000*2800*1400
• Trademark：Senerge
• Origin：Zhejiang
• HS Code：8479811
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. GZR-1100 Center Height (mm) 850 Max Center Distance of Spindle (mm) 1150 Max Working Torque N.M 200 Winding Speed (Rpm) 0--200 Outer Dia (mm) 700 Coil Height (mm) 1100 Max Coil Weight (Kg) 500kg Machine Power (Kw) 6 Flat Wire(mm)(Max) 3*12 Transport Package Standard Specification 6000*2800*1400 Trademark Senerge Origin Zhejiang HS Code 8479811 Production Capacity 30 Sets/Month

Product Description

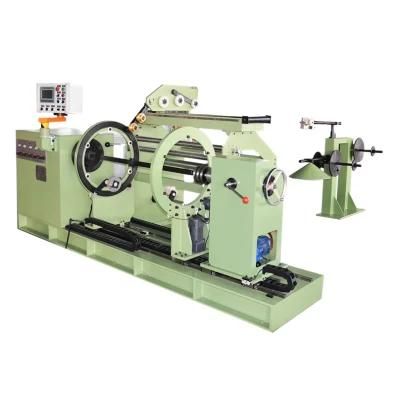

GZR-1100 HV winding machine

1. Summary
GZR-1100 type automatic winding machine applies to winding coils for various types of small distribution transformer, current transformer and reactor etc.
It consists of winder, automatic wire pitch setter, layer insulation pay-off stand, tension adjustable pay-off stand, pneumatic system, PLC control and servo system. Having the advantages of high automaticity, complete functions, strong power etc. and ensures the axial and radial tightness of coil. It can also be used to manufacture square coil.

2. Main Specification
Center Height (mm)                           850
Max Center distance of spindle (mm)             1150
Spindle specification (mm)          50*90 or 40*40or 50*50or 60*6
Max working torque N.M                       200
Winding speed (rpm)                          0--200
Speed adjustment way               Stepless frequency control

Coil applicable
Outer Dia (mm)                             ≤700
Coil height (mm)                           ≤1100
Max Coil weight (kg)                       500kg
Machine power (kw)                         6
Max. set turns                               9999.9

Wire Specification
Round wire(mm)                            Φ0.3-Φ3.5
Flat wire(mm)(Max)                          3*12
Automatic alignment function        Minimum pitch of wire 0.01mm
Counting mode
5-digital display, can set total turns with 20 sub-turns, reverse counting available, power-off  memory .also can Pre-set 30 groups of winding data.
