High Speed China in Stock E-Tube Type Insulated Terminal Crimping Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type：Electric
  • Condition：New

Base Info

  • Model NO.：WL-6PC
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Name：Semi-Automatic Tubular Terminal Crimping Machine W
  • Model：Wl-6PC
  • Function：Stripping Twising Crimping
  • Rotary Cutting Blade：2 Pieces, Material: Imported Tungsten Steel
  • Clamping Device：Motor Driven, Clamping Force Program Control
  • Storage Capacity：100 Sets of Cable Crimping Data
  • Neumatic Device：SMC Solenoid Valve, SMC Cylinder
  • Detection Device：Terminal Supply Detection
  • Crimping Range：0.3 - 4 mm2 , 2.5 - 6 mm2
  • Capacity：1000-1300PCS,Hour
  • Transport Package：Wooden Carton
  • Specification：56*52*52cm
  • Trademark：crown
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：100PCS,Month
  • Package size per unit product：56.00cm * 52.00cm * 52.00cm
  • Gross weight per unit product：56.000kg

Description

ModelWL-6PCControl methodtouch screen and programmable controller, MOONS driveDrive modemotor/imported ball screwRotary cutting blade2 pieces, material: imported tungsten steelClamping devicemotor driven, clamping force program controlCrimping devicemotor driven, program control of crimping forceStorage capacity100 sets of cable crimping dataPower supplyAC220V/50/60HZ 400WDC powerMEAN WELL switching power supplyWorking environment0-50 degrees, moderate dryness (please use clean and dry air source)Pneumatic deviceSMC solenoid valve, SMC cylinderDetection deviceterminal supply detectionDimensionsL430mmx W505 mm x H425mm (length, width and height)Overall weight68kg

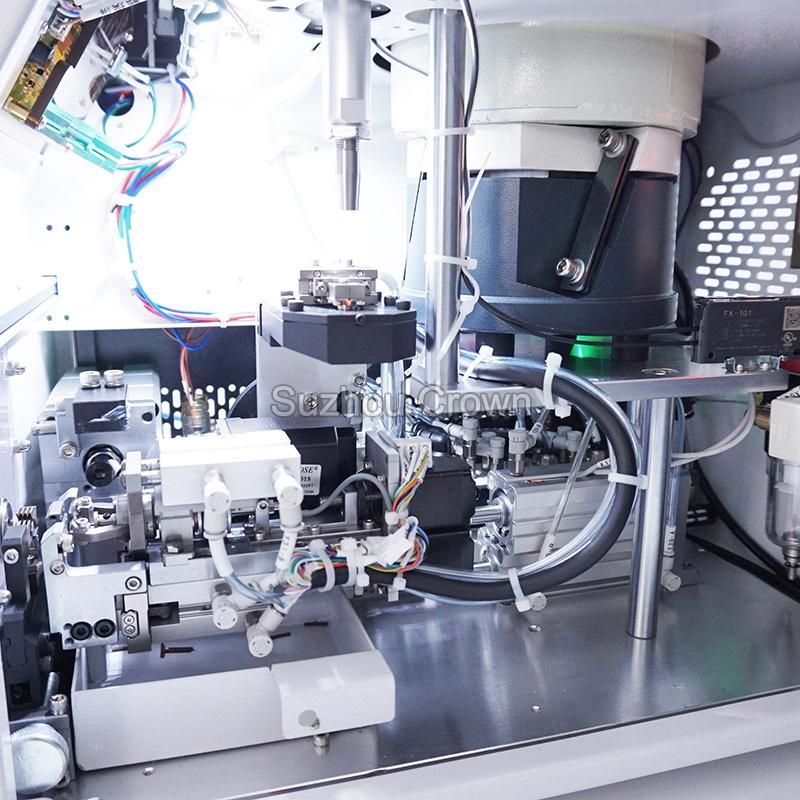

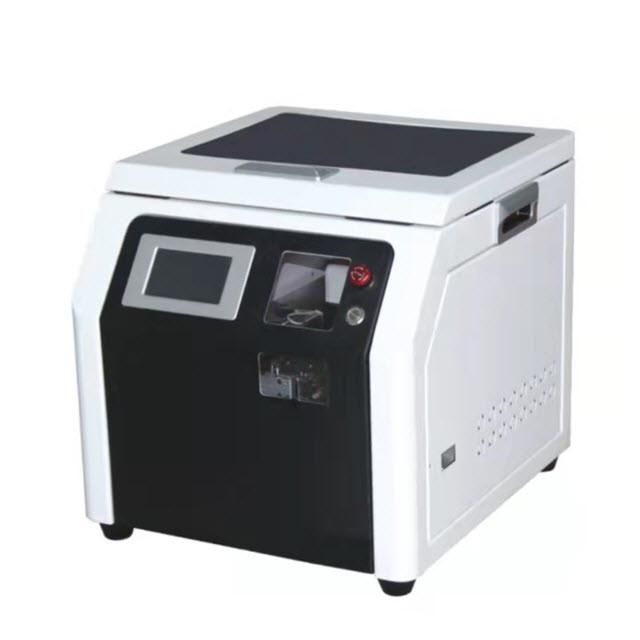

Product Show:
High Speed China in Stock E-Tube Type Insulated Terminal Crimping Machine
High Speed China in Stock E-Tube Type Insulated Terminal Crimping Machine
High Speed China in Stock E-Tube Type Insulated Terminal Crimping Machine

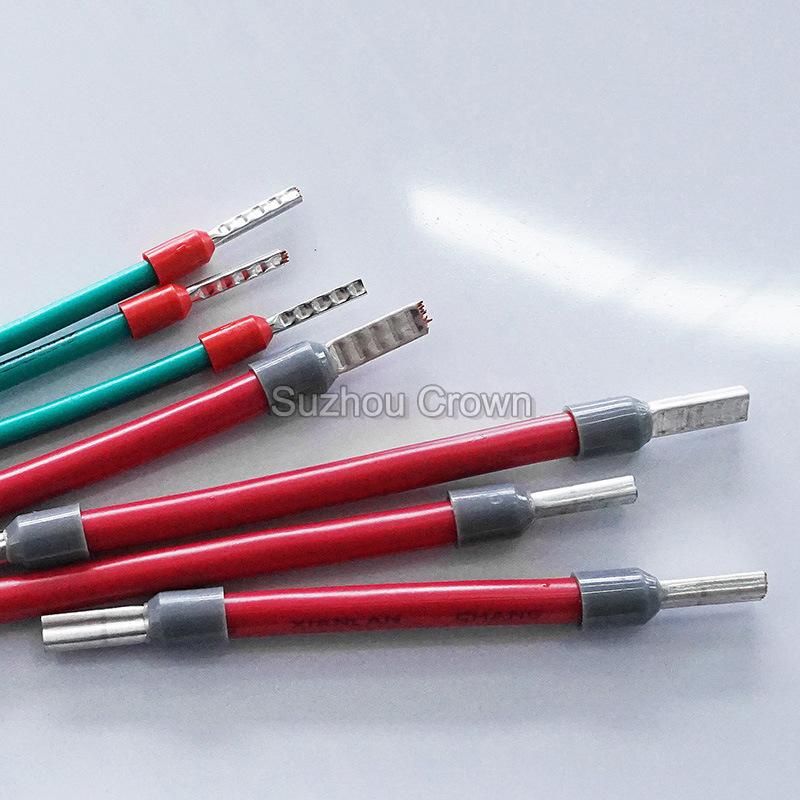

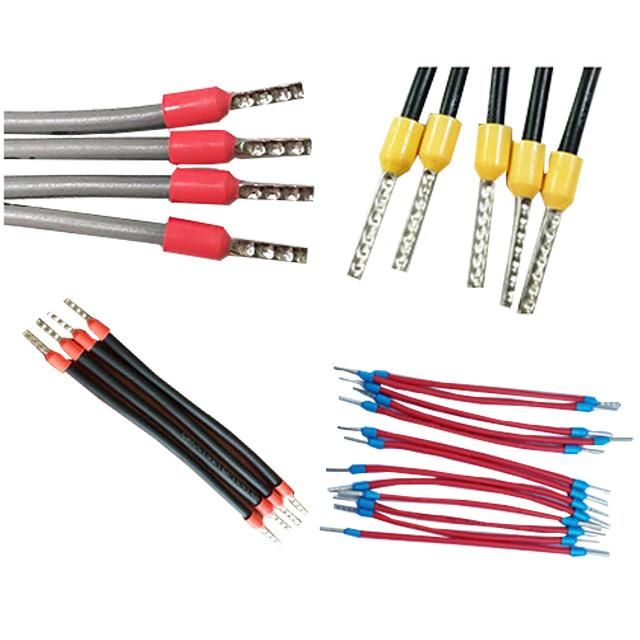

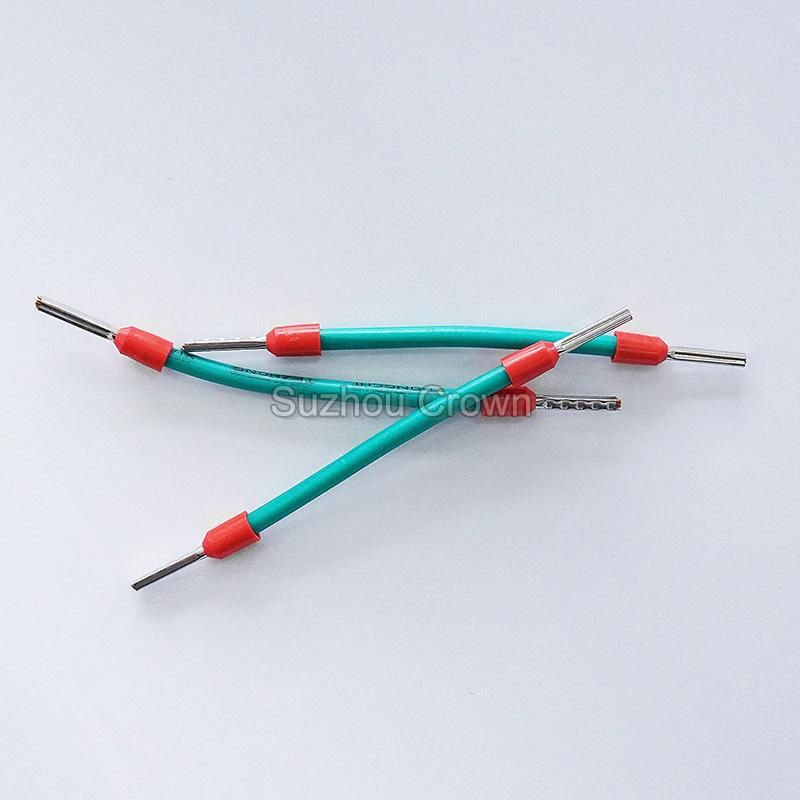

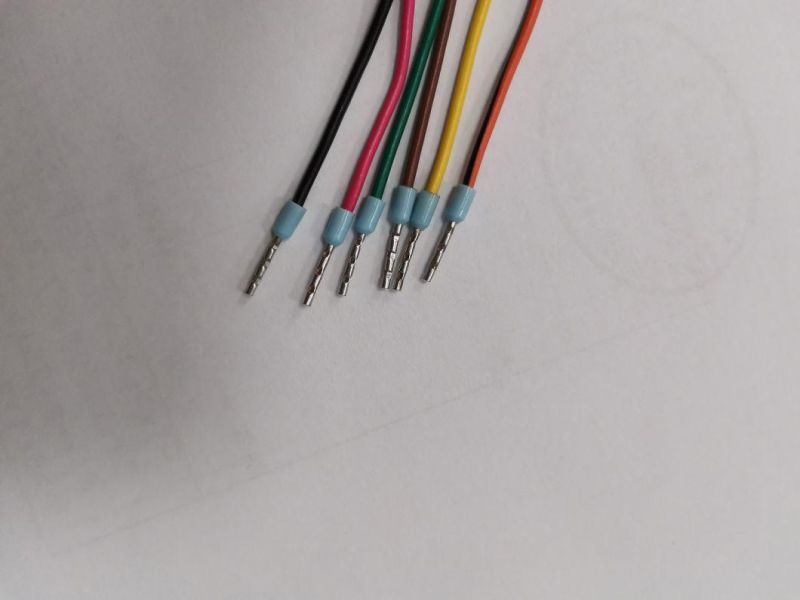

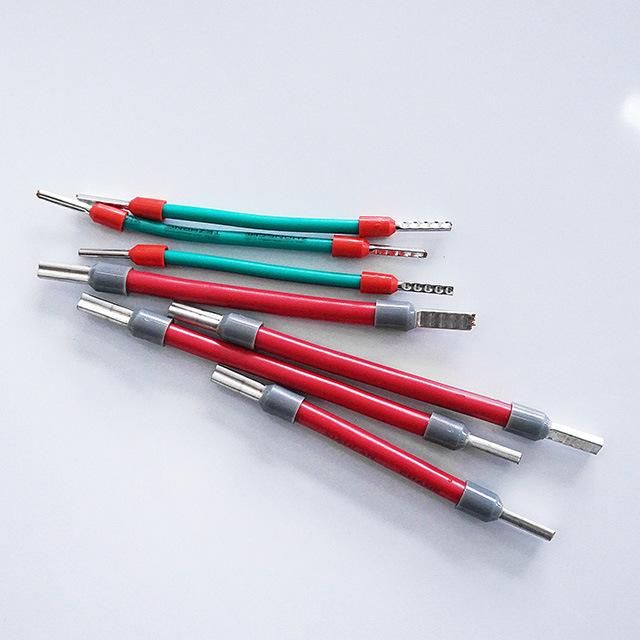

Application Terminal:
High Speed China in Stock E-Tube Type Insulated Terminal Crimping MachineHigh Speed China in Stock E-Tube Type Insulated Terminal Crimping Machine
High Speed China in Stock E-Tube Type Insulated Terminal Crimping MachineHigh Speed China in Stock E-Tube Type Insulated Terminal Crimping Machine
