• Model NO.：Jaguar A4
• Weight：350kg
• Dimension(mm)：2600*615*1400
• Temperature Precision：1ºC
• Power Supply：380V
• Power Consumption：4kw
• Heating System：Electric
• Function：High Temperature Resistance
• Mould Life：>1, 000, 000 Shots
• Transport Package：Wooden Box
• Specification：CE, ISO
• Trademark：Jaguar Autoamtion
• Origin：China Shenzhen
• HS Code：8515190000
• Production Capacity：100PCS,Month

modelJaguar A4Number of heating-zoneup four/bottom fourLength of heating-zone1400mmHeating wayIndependent and cycle full hot airMax width of PCB board300mmTransmission directionleft→rightTransmission belt height800±20mmTransmission speed0-2000mm/minStarting power10KWNormal working consume4KWWarm-up timeAbout 20 minutesTemperature control rangeRoom temperature-400ºCTemperature control wayPID controllingTemperature precisionaccuracy ±1ºCTemperature disparity on PCB board±2ºCAbnormity alarmTemperature abnormity supper high or supper low temperature
After constant temperaturePower supplyFive lines and three phase 380V 50/60Hzdimension(mm)2600×615×1400weight350KG
Features:
1.The heating system is unique , advanced and long-life.
2.High efficiency and energy-save nickel cauterize heating pipe is used in heating system(replacement within one year), strong hot air cycle structure , making PCB and components heating equally, high efficiency and rapid heating speed.
3.The intelligent micro-computer precision controller (replacement within one year), through intelligent operation of PID, control heating automatically , blurry controlling function can respond to thermal changing with furthest speed ,and then make temperature stable by inner controlling.Modularization design , easy to repair and assembly.

4.Import and high temperature and high speed motor be used (replace within one year), stable operation,small tremble, small noise. Top body can be start wholly to make hearth clean. The efficiency be improved greatly, extending the using time. The heating system use import components to make sure high stability and reliability of all system.

5.import driver is used in the reliable and stable transmission system( replacement within one year),matching turbine decreasing driver STK with 1:150 , stable operation, speed range is from 0-2000mm/min.

6.independent roller structure and splint support combined with stainless steel net chain , stable operation special stainless steel net chain, it is durable and wearable. It can't change for long time.

7.Stable and reliable electronic controller system.

About Us:

Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

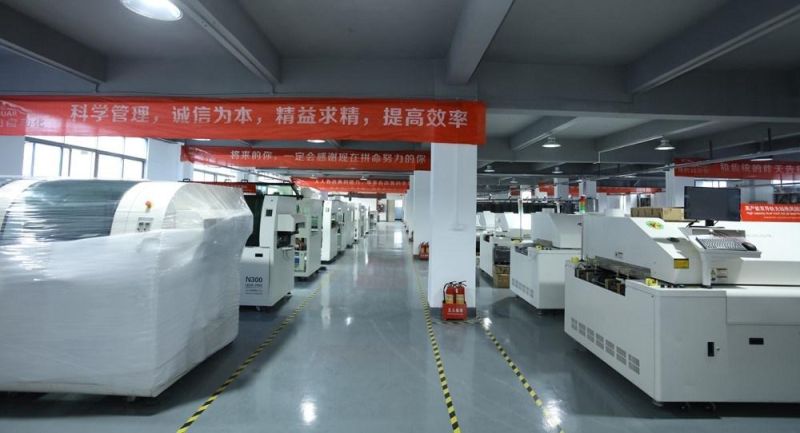

Our Factory:
