Needle Coil Winding Machine for Brushless Motor & Stepping Motor
Shanghai Wind Automation Equipment Co., Ltd.- Voltage：220V
- Warranty：12 Months
- After-Sales Service：Engineers Avaiable to Service Overseas
- Working Station：1
- Color：Customized
- Weight：450kg
Base Info
- Model NO.：WIND-2A-TSM
- Dimension：1600X1100X1400mm
- Condition：New
- Automatic：Automatic
- Transport Package：Wooden Case
- Specification：Middle Size
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-2A-TSM Dimension 1600X1100X1400mm Condition New Automatic Automatic Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description
Needle Coil Winding Machine For Brushless Motor & Stepping Motor
This needle winding machine is suitable for wires up to 18 AWG (1.0 mm) with latest winding technology for drives and controls.The adoption of rectangle winding track enables this inslot winding machine to produce stators with narrow slot width and heavy wire but high slot filling rate.
(1)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and dual spindle synchronous control unit
Lubrication system
(2)Specification
| Wire diameter | 0.08~1.0mm |
| Stator ID | Min 19mm |
| Stack length | Less than 100mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 6,8,9,10,12,14,18(customized) |
| Air source | 5~7kg/cm3 |
| Power | 2KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 450KG |
| Dimension | 1600x1100x1400mm |
(3)Features
Rectangle winding track
Precision performance of needle winding
Winding speed adjustable according to wire diameter
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
(4)Application
Suitable for various types BLDC motor stators with narrow slot width and heavy wire but high slot filling rate.

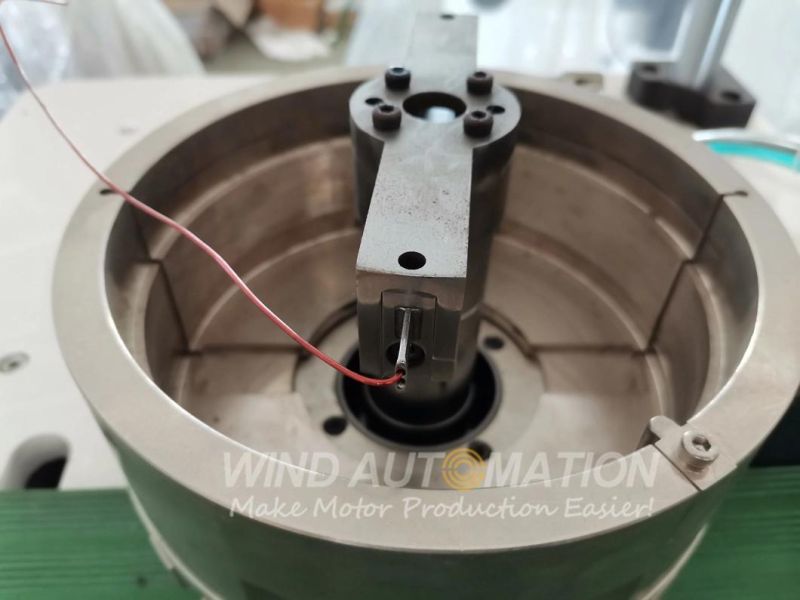

(5) Machine working station
