Automatic Coil Winding Machine for High Filling Rate Stator
Shanghai Wind Automation Equipment Co., Ltd.- Voltage：220V
- Warranty：12 Months
- After-Sales Service：Engineers Avaiable to Service Overseas
- Working Station：1
- Color：Customized
- Weight：450kg
Base Info
- Model NO.：WIND-2A-TSM
- Dimension：1600X1100X1400mm
- Condition：New
- Automatic：Automatic
- Transport Package：Wooden Case
- Specification：Middle Size
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-2A-TSM Dimension 1600X1100X1400mm Condition New Automatic Automatic Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description
Automatic Coil Winding Machine For High Filling Rate Stator

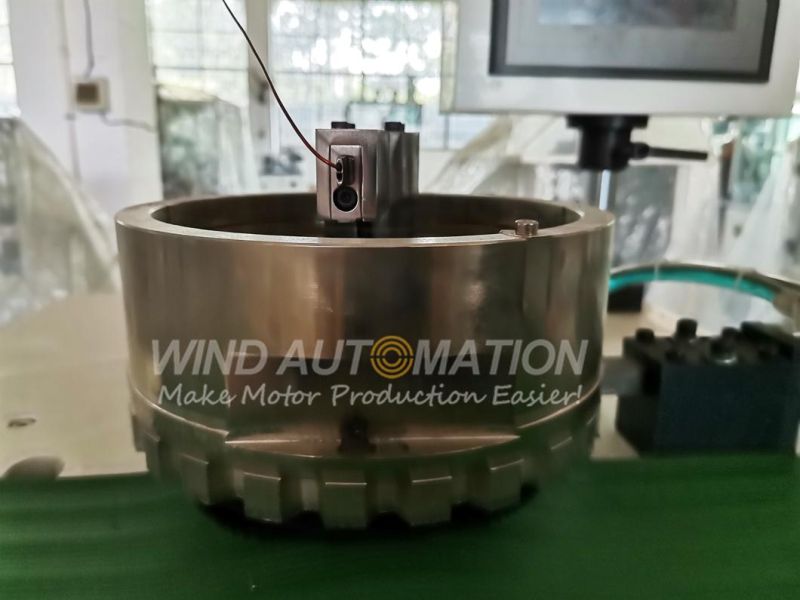

This needle winding machine is able to work with stators with narrow slot width but a high number of turns per tooth. The wire range is up to 18 AWG (1.0 mm) . Winding track is in rectangle shape.
(1)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and dual spindle synchronous control unit
Lubrication system
(2)Specification
| Wire diameter | 0.08~1.0mm |
| Stator ID | Min 19mm |
| Stack length | Less than 100mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 6,8,9,10,12,14,18(customized) |
| Air source | 5~7kg/cm3 |
| Power | 2KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 450KG |
| Dimension | 1600x1100x1400mm |
(3)Features
Rectangle winding track
Precision performance of needle winding
Winding speed adjustable according to wire diameter
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
(4)Application
Suitable for various types BLDC motor stators with narrow slot width and heavy wire but high slot filling rate.
(5)Machine specification
