Generator Motor Stator Wave Winding Machine Coil Widner
Shanghai Wind Automation Equipment Co., Ltd.- Warranty：12 Months
- Color：Customized
- After-Sales Service：Engineers Avaiable to Service Overseas
- Condition：New
- Customized Service：Provided
- Transport Package：Wooden Case
Base Info
- Model NO.：WIND-BL-1
- Specification：Middle Size
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-BL-1 Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description
Generator Motor Stator Wave Winding Machine Coil Widner

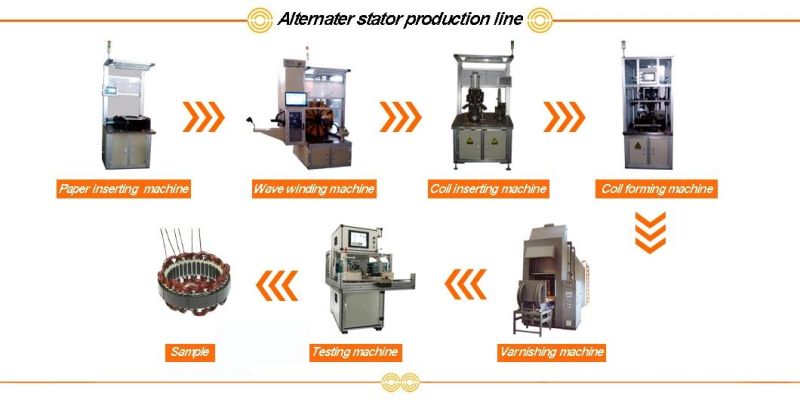

This wave winding machine is suitable for alternator, or generator stator to do coil winding. It will automatically wind the coil into the tooling. In normal case, a winding inserting machine will be needed. Otherwise, the coil inserting process should be done manually. (1)Specifications
| Stator ID | 70~150 mm |
| Stack length | 5~100mm |
| Wire range | 0.5~3mm |
| Power | 3KW |
| Machine dimension | 760x1250x2350mm |
| Power supply | AC 380 |
| Air pressure | 0.5~0.7MPa |
(2) Application
Suitable for auto alternator stator wave shape winding automatic wire winding, automatic wire embedding and putting into winding transfer former automatically.
