4 Working Stations Stator Coil Winding Machine
Shanghai Wind Automation Equipment Co., Ltd.- Warranty：12 Months
- Color：Customized
- After-Sales Service：Engineers Avaiable to Service Overseas
- Condition：New
- Customized Service：Provided
- Transport Package：Wooden Case
Base Info
- Model NO.：WIND-4VW
- Specification：Middle Size
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-4VW Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description

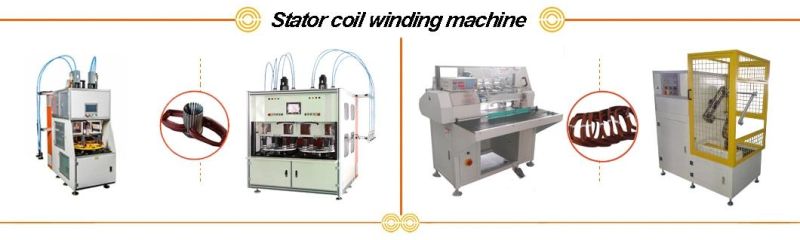

4 Working Stations Stator Coil Winding Machine
This machine is an high automation machine for stator coil winding. It is special design for stators with high production capacity requirement.
| Wire diameter | 0.19~1.2mm |
| Winding head | 2 |
| Station | 4 |
| Max stator OD | 120mm |
| Core length | 65mm |
| Min stator ID | 400mm |
| Winding Speed | Max 2500r/min |
| Air pressure | Min 0.5Mpa |
| Power supply | 380V 1.5KW |
| Weight | About 4500kgs |
| Dimension | 2400x1900x2250mm |
(2) Feature
2 winding head 4 working station
Manual unloading coils after winding
Rotation and indexing controlled by servo system
No distinct vibration or noise during winding
Automatically stop if wire is run out
All winding parameter programmable on touch screen
(3) Application
This machine is suitable for mass production of 2 poles, 4 poles and 6poles coils winding.
