• Model NO.：XJ-500
• Type：High-speed Stranding Machine
• Transport Package：Standard Shipping Package
• Specification：XJ-500
• Trademark：Newtopp
• Origin：China
• Production Capacity：500set,Year

Basic Info.

Model NO. XJ-500 Type High-speed Stranding Machine Transport Package Standard Shipping Package Specification XJ-500 Trademark Newtopp Origin China Production Capacity 500set/Year

Product Description

Application field:

Apply for bare copper wire,tinned wire,enameled wire twisted.


Machine technical parameter:

1.Wire specification: 0.08-0.45
2.Twisted area:0.08-0.45
3.Comprehensive pitch:4.2-39.6
4.Rotate speed:Max 3000rpm
5.Machine power:7.5HP
6.Traversing:Polish rod traversing
7.Brake:Electromagnetic brake
8.Capstan tension:Electromagnetic auto-tracking





Machine parts:


No.	Parts name&Specs.	Qty
1	Ø300-500mm*26 heads tension gun passive pay off	1set
2	500 bunching host machine	1set

Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa

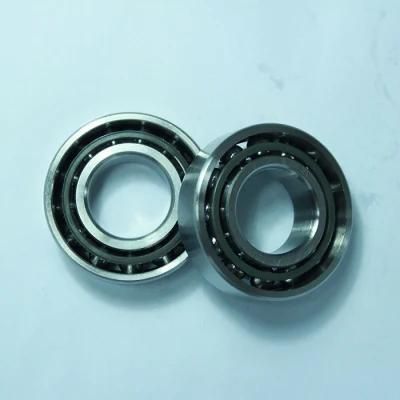

3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan)



Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us
Company introduction



Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.

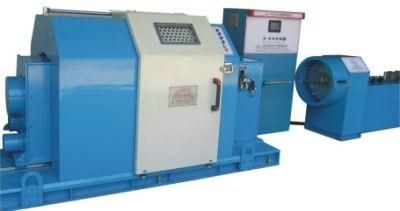

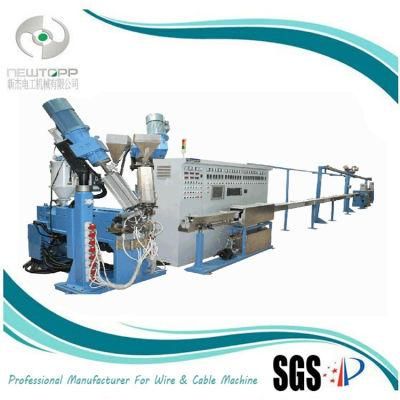

Our product

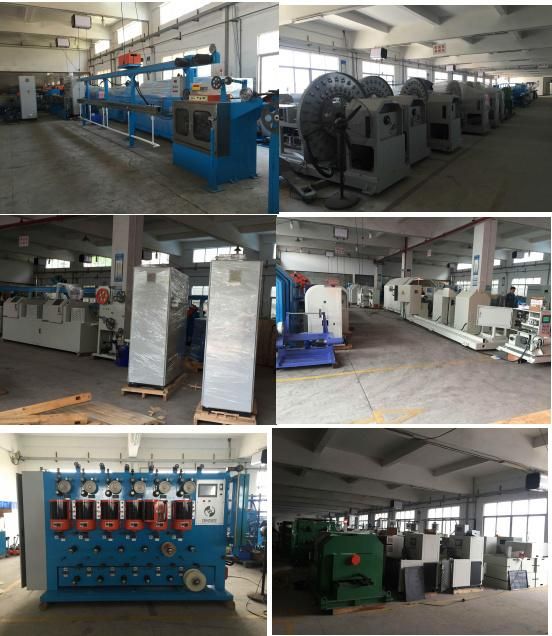

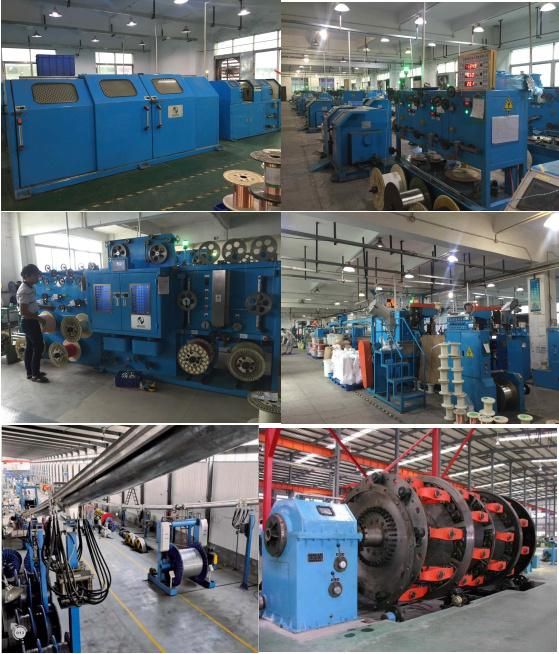

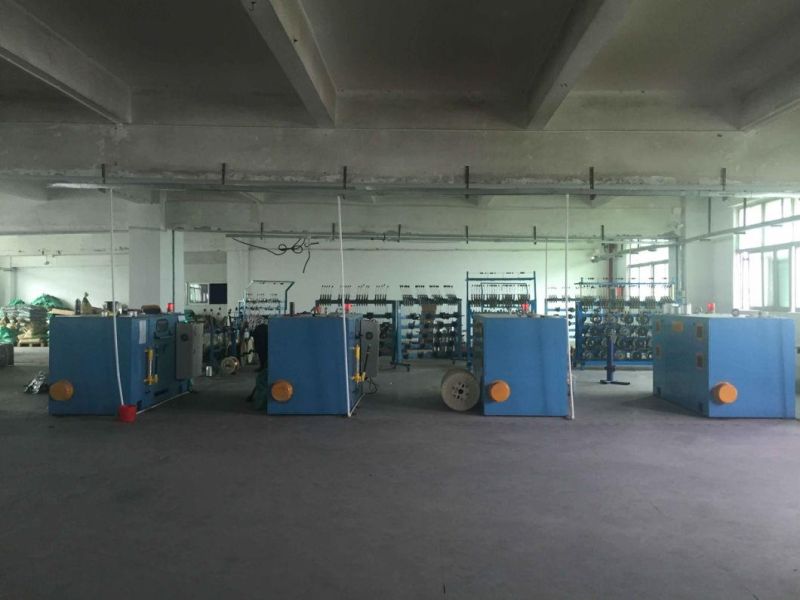

Products in client site




Certification and Patent




 Contact us

Contact person: Owen Zeng
Mob:+86-17390410655


DongGuan Newtopp Electrical Machinery Co.,Ltd.
http://dgnewtopp.en.made-in-china.com
Tel.:+86-769-85372062   Fax:+86-769-85340833
Add.:No.286, Huaide Road, Humen Town,Dongguan City, Guangdong Province.
