How to Lace Stator Coil by Stator Winding Lacing Machine
Shanghai Wind Automation Equipment Co., Ltd.- Warranty：12 Months
- Color：Customized
- After-Sales Service：Engineers Avaiable to Service Overseas
- Customized Service：Provided
- Transport Package：Wooden Case
- Specification：Middle Size
Base Info
- Model NO.：WIND-100-CL
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-100-CL Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description
How to Lace Stator Coil by Stator Winding Lacing Machine

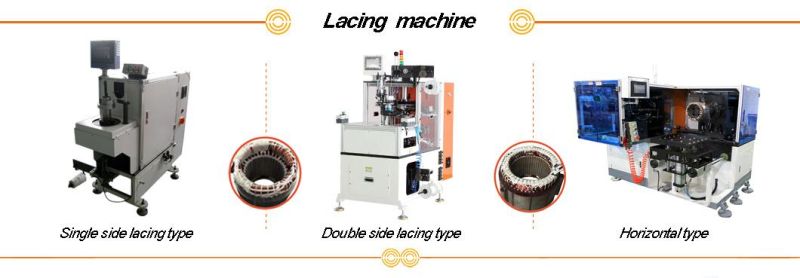

This machine is single side lacing machine, The lacing is done by needle one slot by one. Needle transposition and indexing are controlled by servo motors.
(1) Specification
| Stack length | 10~100mm |
| Stator ID | 35~100mm |
| Stator OD | Max 160mm |
| Coil height | Max 40mm |
| Lacing mode | Slot by slot/ interval slot/ fancy lacing |
| Lacing speed | 0.5s/slot |
| Power | 2KW |
| Power supply | 380V 50/60HZ |
| Weight | 600KG |
| Dimension | 1000x600x1150mm |
(2) Application
This type of machine is suitable for small-sized AC motor, induction motor stators.
(3) Feature
Manual loading and unloading
Several lacing mode applicable
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Easy for operation, No skilled operator required
