70 Jacket Sheat Extrusion Line/Wire Making Machinery Supplier/Brazil Chile Cable Machine
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Transport Package：Standard Shipping Packing
Base Info
- Model NO.：XJ-70
- Specification：XJ70
- Trademark：Newtopp
- Origin：China
- HS Code：8477209000
- Production Capacity：200sets,Year
Description
Basic Info.
Model NO. XJ-70 Specification XJ70 Trademark Newtopp Origin China HS Code 8477209000 Production Capacity 200sets/YearProduct Description
Application field:Used for power wire,computer wire,data wire and high frequency wire outside jacket insulation extrusion.
Machine technical feature
1.Concentricity: 93-97% OD tolerance: Solid +/-0.005
2.Wire specification: Φ1.5mm-12mm
3.The highest output: 140KG/hr The highest wire speed: 400M/MIN
4.Body temperature will be controlled within ±1ºC
5.Extrusion material: PVC, SR-PVC, PE, PP, PU etc.
6.Screw parameters:L/D ratio:26;1,compression ratio:2.7-3.2,screw material:38CrMoAIA,vacuum heating treatment,surface grinding polishing chromium plating.
Machine parts
| No. | Parts name&Specs. | Qty |
| 1 | ø500-630mm dual-heads passive pay off with magnetic powder | 1set |
| 2 | ø300mm bumper bracket | 1set |
| 3 | ø70mm main extruder | 1set |
| 4 | Electrical control cabinet | 1set |
| 5 | Centering free of adjustable crosshead | 1set |
| 6 | 1.5M movable cooling water tank | 1set |
| 7 | Laser diameter tester (Eectrl) | 1set |
| 8 | 7.5M single layer cooling water tank | 1set |
| 9 | 10M high precision horizontal wire accumulator | 1set |
| 10 | ø570mm dual-wheels capstan | 1set |
| 11 | High frequency spark tester | 1set |
| 12 | ø500-630mm dual-axis take up | 1set |
Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install and how to use the machine
* Customized design support. * Engineers available to service machinery overseas.
* View our Factory.
About us
Company introduction
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.
Our products

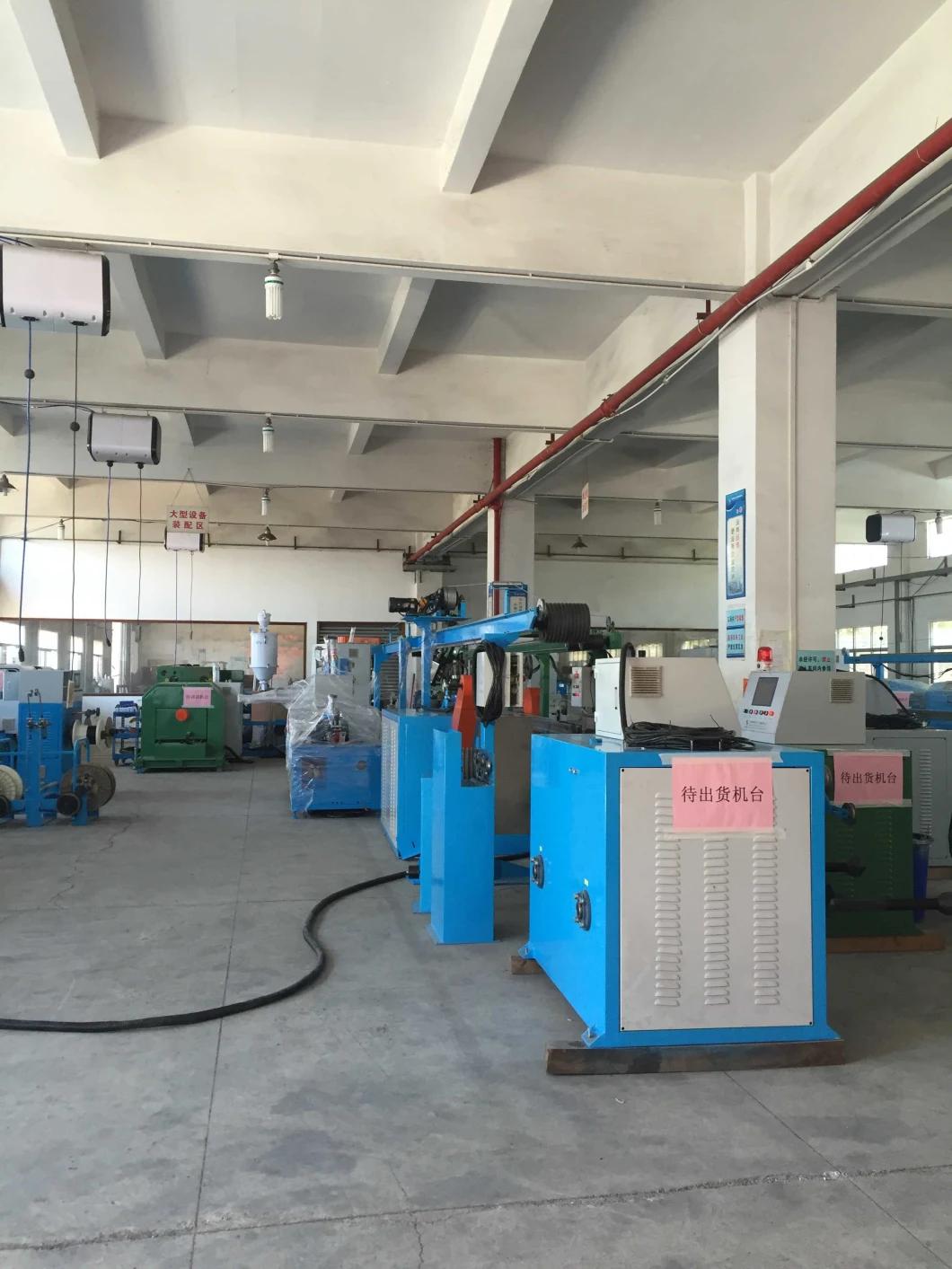

Products in client site
Certification and Patent
