• Model NO.：XJ-8C+16C+24C
• Type：To Back Stranding Machine
• Voltage：220-660V or Other Voltage
• Wire Specification：AWG24-AWG8
• Transport Package：Standard Shipping Packing
• Specification：XJ 8C+18C+24C
• Trademark：NEWTOPP
• Origin：China
• Production Capacity：100sets,Year

Basic Info.

Model NO. XJ-8C+16C+24C Type To Back Stranding Machine Voltage 220-660V or Other Voltage Wire Specification AWG24-AWG8 Transport Package Standard Shipping Packing Specification XJ 8C+18C+24C Trademark NEWTOPP Origin China Production Capacity 100sets/Year

Product Description

Application field:


Apply for high requirement special standard telecommuncation wire&cable standing processing.Mainly wire and cable are USB3.1,multi-core medical cable,drag chains wire.new energy charging wire,QSFP etc high-end standing and double center taping can be finished all at once.




Machine  technical parameter:
1.wire specification:Φ0.5-3.4mm2.Twisted OD:Φ2.0-26mm3.Pitch range:20-500mm4.Machine power:10HP5.Rotate speed:MAX100rpm6.Take-ups type:8+8+8 heads equal proportion layout7.Back-twist rate:100% Non-polar adjustment8.Back-twist heads:8+8+89.Wrapping tension:High speed centering wrapping,auto tension tracking,wrapping tension keep constant from start to end,no needadjustment10.Pay-off tension:Magnetic power tension,meter counter and auto tracking,tension keep constant from start to end,no need adjustment.11.Traversing;Servo traversing,no damage during traversing,distance can be set freely according to wire specification.





Machine parts:

No.	Parts name&Specs.	Qty
1	8C+16C+24C pay off device	1set
2	Dual layers centering taping device	1set
3	¢636mm dual-wheel capstan device	1set
4	¢1200 Axis row-type take up machine	1set
5	Electrical control cabinet	1set
6	Eye mould base( integrated with host machine)	1set

Main parts brand

1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan)




Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.


About us

Company introduction



Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.

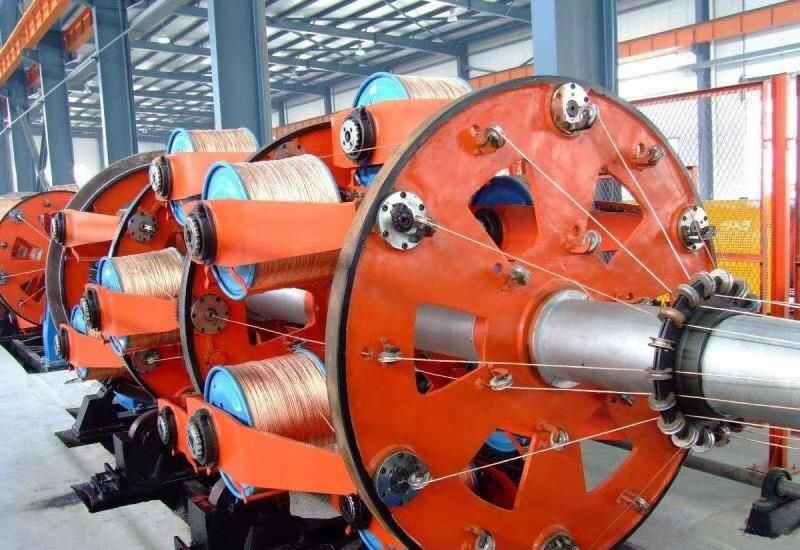

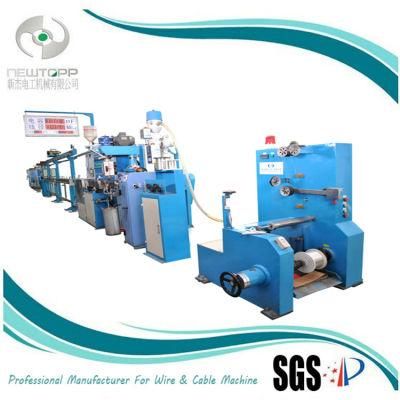

Our products



Products in client site


Certification and Patent



 Contact us

Contact person: Owen Zeng
Mob+86-17390410655


DongGuan Newtopp Electrical Machinery Co.,Ltd.
http://dgnewtopp.en.made-in-china.com
Tel.:+86-769-85372062   Fax:+86-769-85340833
Add.:No.286, Huaide Road, Humen Town,Dongguan City, Guangdong Province.
