• Model NO.：XJ-8T(4+4)
• Type：To Back Stranding Machine
• Voltage：220-660V or Other Voltage
• Transport Package：Standard Shipping Packing
• Specification：XJ 8T
• Trademark：NEWTOPP
• Origin：China
• HS Code：8479400000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. XJ-8T(4+4) Type To Back Stranding Machine Voltage 220-660V or Other Voltage Transport Package Standard Shipping Packing Specification XJ 8T Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 100 Sets/Year

Product Description

Application field:

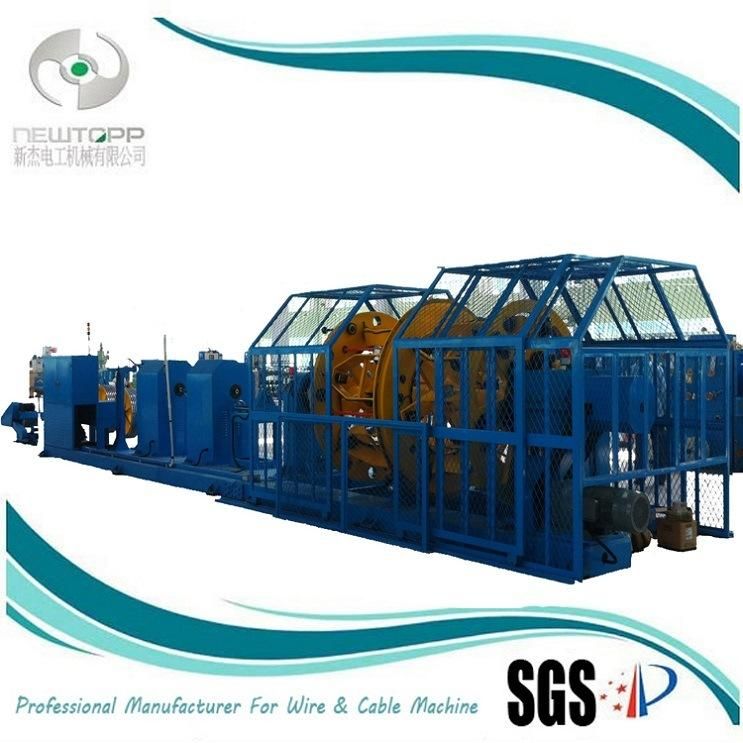

The machine is used to parallel wires and high signal transmission cable twisting and pair twisting,wrapping once finished.Pay-off bobbins placed by cross type,the linear speed of difference of pay-off bobbin with drawing wheels forming the pitch,suit to high requirement standard telecommunication cables production.


Machine  technical parameter: 1.Used for parallel wires and high frequency signal transmission cable twisting and pair twisting.2.Wire specification:1.0*0.5-4.0*2.0 flat wire3.Twisted OD:Φ2-10mm4.Pitch range:20-500mm5.Rotate speed:Max200rpm6.Power:15HP7.Pay-off type:4+4 pay-offs equal proportion arrangement8.Wrapping tension:High speed centering wrapping/auto tension tracking,wrapping tension keep constant from start to end,needn't any manual regulation.9.Pay-offs tension:Magnetic power tension,auto tracking and meter counter,keep constant tension from start to end,needn't any manual regulation.10.Traversing:Axis-row type take-ups.There're no damageed during the traversing process,traversing space and distance can be set freely.



Machine parts:


No.	Parts name&Specs.	Qty
1	8T(4+4) pay off device	1set
2	Dual layers centering tapping device	1set
3	¢477mm dual-wheel capstan device	1set
4	¢1000 Axis row-type take up machine	1set
5	Electrical control cabinet	1set
6	Eye mould base( integrated with host machine)	1set

Main parts brand

1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan)




Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.
