Automated Thin Wire Coil Winding and Tying Machine (WL-BSO)

Suzhou Crown Electronic Technology Co., Ltd.
  • Voltage：220V
  • Model：Wl-Bso
  • Theoretical Yield：1200PCS, H
  • Applicable Wire：USB Cables, DC Power Cords
  • Winding Appearance：Small Round Coil and Bundled Wi
  • Applicable Wire Length：Less Than 6m (Depending on Wire)

Base Info

  • Model NO.：WL-BSO
  • Main Motor：Servo and Stepping Motor
  • Applicable Wire Diameter：3.3mm (Depending on Wire)
  • Winding Space：45-120mm
  • Power Consumption：12 Hours 1.5 Degrees
  • Bundling Diameter：Less Than 18mm
  • Head Length：20-60mm
  • Tail Length：>20mm
  • Air Pressure：0.4-0.55MPa
  • Weight：120kg
  • Dimension：100*120*180cm
  • Automatic：Automatic
  • Certification：CE
  • Transport Package：Wooden Case
  • Specification：100*120*180cm
  • Trademark：Crown
  • Origin：China, Jiangsu
  • HS Code：8479811000
  • Production Capacity：1200PCS, H

Description

120KG
Features:

The automatic wire coiling and bundling machine works well with thin and short wires. It winds wires into small coils and bundles the coil with two ties.

  • Winding small coils and bundling with two ties

  • Works well with small, thin and short wires

  • Speed: up to 1200pcs/h, saving labor

  • Simple and easy to operate, easy to maintain

  • The finished product is beautiful, generous, neat and easy to pack

  • Ergonomic design to reduce fatigue

  • Adopts the original SMC cylinder imported from Japan and a full set of pneumatic components from Taiwan AirTAC


Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Automated Thin Wire Coil Winding and Tying Machine (WL-BSO)

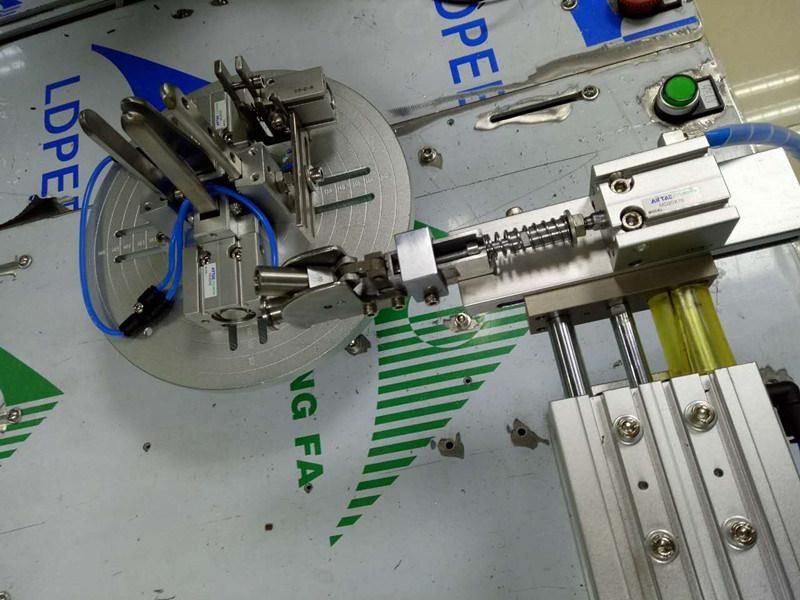

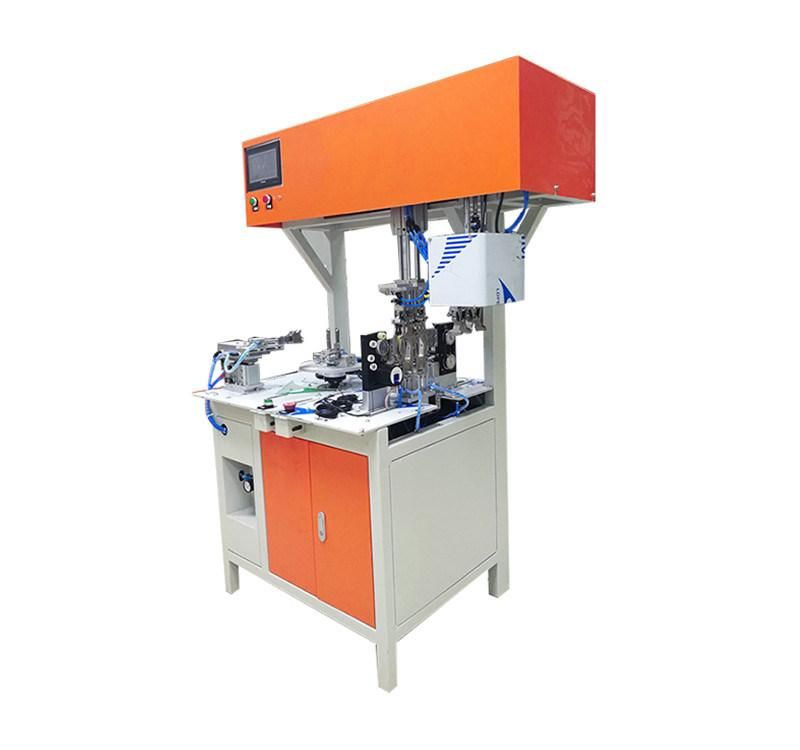

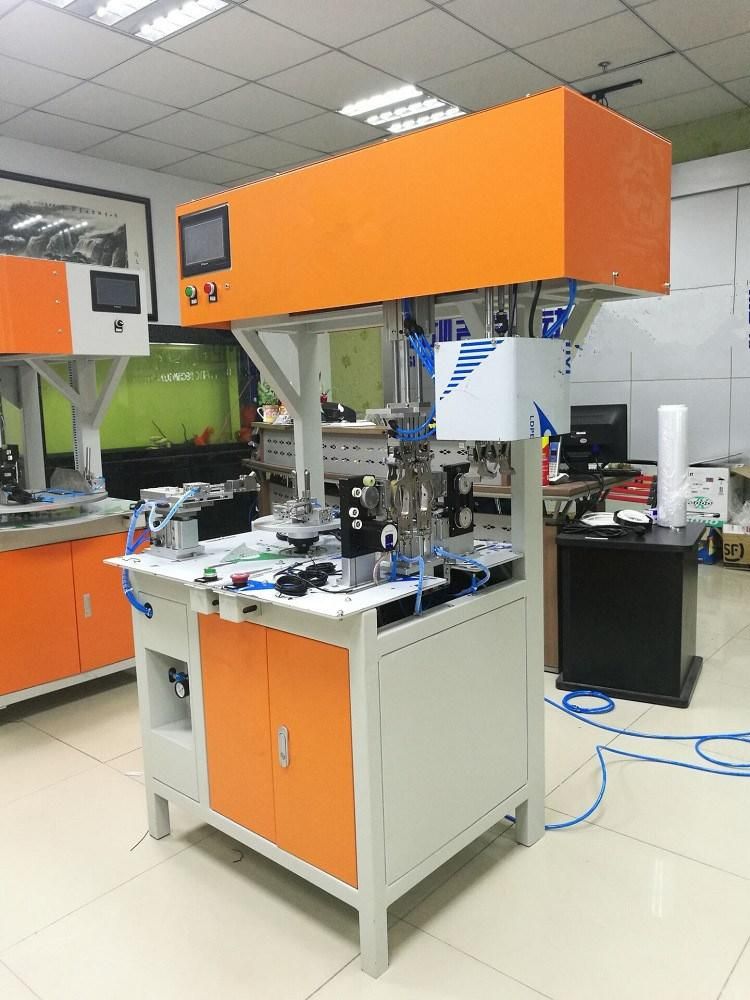

Product show:
Automated Thin Wire Coil Winding and Tying Machine (WL-BSO)
Automated Thin Wire Coil Winding and Tying Machine (WL-BSO)
Automated Thin Wire Coil Winding and Tying Machine (WL-BSO)

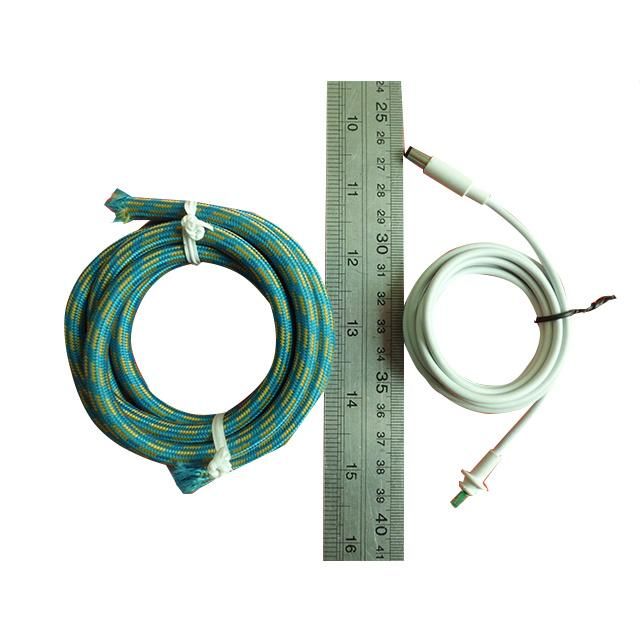

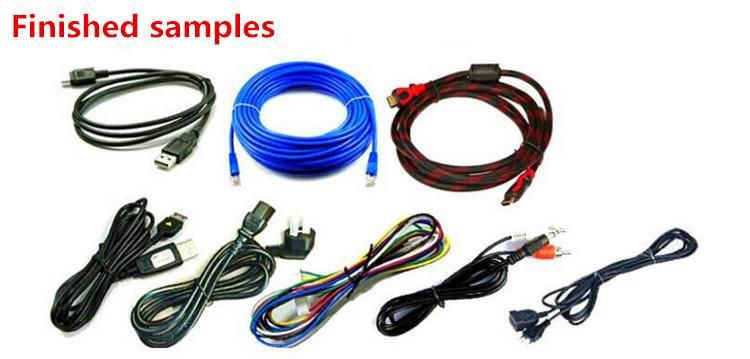

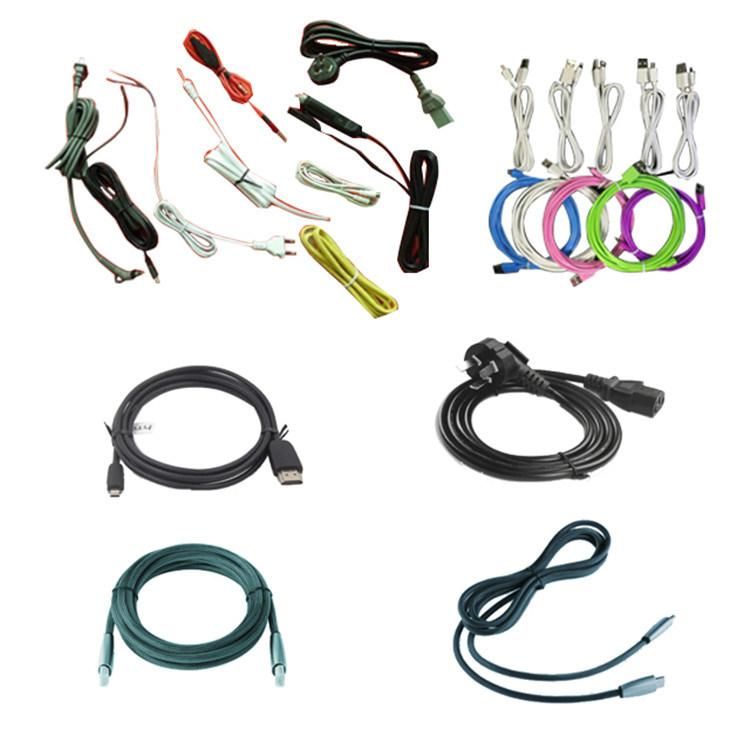

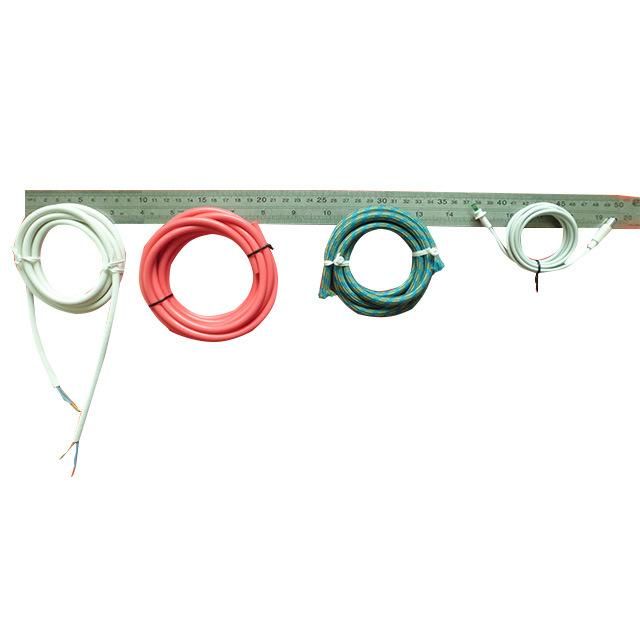

Machine processing samples:
Automated Thin Wire Coil Winding and Tying Machine (WL-BSO)
Automated Thin Wire Coil Winding and Tying Machine (WL-BSO)


Automated Thin Wire Coil Winding and Tying Machine (WL-BSO)
Automated Thin Wire Coil Winding and Tying Machine (WL-BSO)

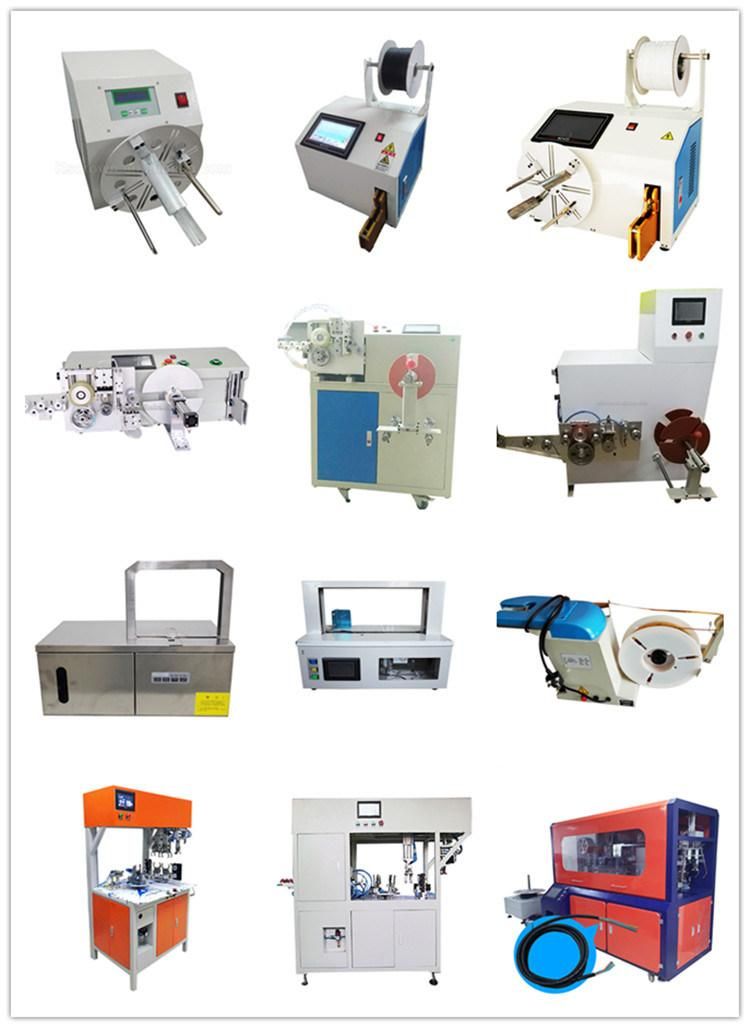

Related products:
Automated Thin Wire Coil Winding and Tying Machine (WL-BSO)

FAQ:
 1.How to order?Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
