• Model NO.：Jaguar F8
• 3 Phase 380V 50/60 Hz(3 Phase 220 V 50/6：Pid Close Loop Control+SSR Driving
• Room Temp. -300ºC：10m³,Min ×2 Exhausts
• Number of Heating Zones：Up8 ,Bottom8
• Exhaust Volume：10m³,Min ×2 Exhausts
• Rails Structure：Subsection Integrated Type
• Max. Width of PCB：400mm(Option 460mm)
• Components Clearance：Top 30mm,Bottom 25mm
• Conveyor Direction：L-R(Option R-L)
• Transport Package：Wooden Case
• Specification：CE ISO
• Trademark：Jaguar
• Origin：Shenzhen, China
• HS Code：85151900
• Production Capacity：100PCS,Month

Basic Info.

Model NO. Jaguar F8 3 Phase 380V 50/60 Hz(3 Phase 220 V 50/6 Pid Close Loop Control+SSR Driving Room Temp. -300ºC 10m³/Min ×2 Exhausts Number of Heating Zones Up8 /Bottom8 Exhaust Volume 10m³/Min ×2 Exhausts Rails Structure Subsection Integrated Type Max. Width of PCB 400mm(Option 460mm) Components Clearance Top 30mm/Bottom 25mm Conveyor Direction L-R(Option R-L) Transport Package Wooden Case Specification CE ISO Trademark Jaguar Origin Shenzhen, China HS Code 85151900 Production Capacity 100PCS/Month

Product Description

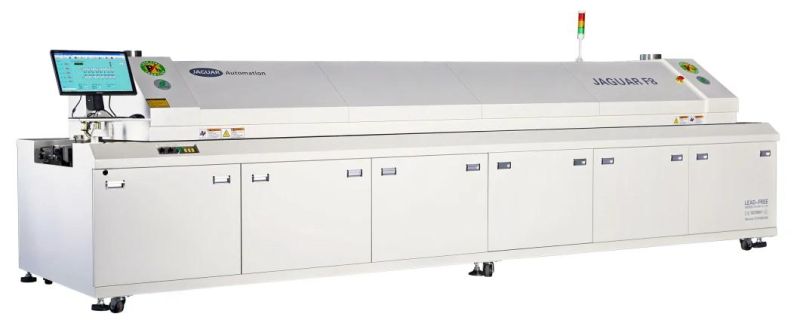

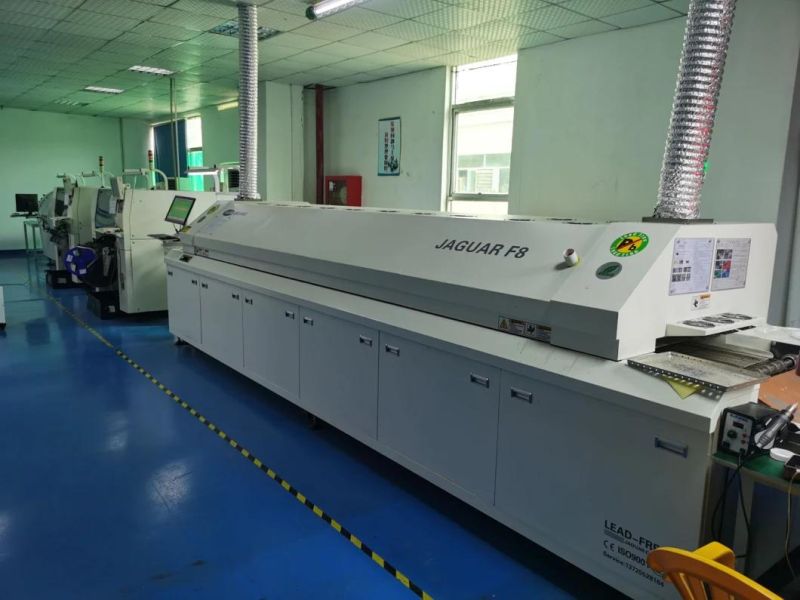

JAGUAR 8 Zones Lead Free Hot Air Reflow Oven F8

Introduction:

1. Heating zone

1.1: New energy saving furnace design, 4 sides return air, the best temperature uniformity
1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
1.3: 8 heating zones, 16 heating elements( up 8/ bottom 8 ) , independent temperature control and switch
1.4: The latest design of nozzle plate, the best insulation performance


1. Control system

2.1: Siemens PLC, table machine performance
2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch


1. Convyeor system

3.1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the accuracy is ±2mm/ Min

4.Cooling zone
4.1: Axial fan forced air cooling ( Up and bottom dual cooling)

5.Protection system
5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
5.2: IPC+UPS
5.3: Super positioning flexible and convenient screw width adjusting system
5.4: IPC delay shutdown function

6.Machine parameters

Machine dimension	5300 x 1350x 1490mm
Color	Ivory
Net weight	Approx. 2250kgs
Exhaust volume	10m3/min X 2pipe
Power supply	5 wire, 3 phase, 380V 50/60HZ
Startup power consumption	48KW
Steady power consumption	8-12KW
Warming time	About 30mins
Temperature range	Room temperature-300ºC
Mesh width	500mm
Max PCB width	420mm
Component height	Up 25mm/Bottom 25mm
Conveyor direction	Left-right ( option: Right-left)
Conveyor speed	300-2000mm/min
Data storage	Process data and status storage(80GB)
Abnormal alarm	Over temp or low temp alarm, sound and light 2 modes

7.Machine configuration

Heating zone	Up 8, Bottom 8
Cooling zone	Up 8, Bottom 2
Control mode	WINDOWS 7+IPC+PLC
Temperature control mode	PID closed loop+SSR driver
Thermal couple wire	3pcs
Conveyor system	Mesh+Chain
Conveyor control mode	3 inverters+Panasonic motor
Hood lift	Electric hood lift
UPS	Standard, power off standby to protect PCB production completed

8.Parts list

Parts	Brand	Origin
SSR	Carlo Gavazzi	Switzerland
Thermal SSR	Carlo Gavazzi	Switzerland
Thermal SSR seat	Carlo Gavazzi	Switzerland
UPS	Santak	U.S.A
Contactor	CHNT	China
PLC	Siemens	Germany
Temperature control module	Huceen	Taiwan, China
Heating tube	Hotset	Germany
Inveter	Delta	Taiwan, China
Conveyor motor	Panasonic	Japan
Width adjustable motor	Panasonic	Japan
HT motor	Guanghui	Taiwan, China
Display	Lenovo	China
Host	Lenovo	China
Cable	Siemens	Germany
Conveyor tooth box	Panasonic	Japan
Width adjustment tooth box	Panasonic	Japan
Galvanized wind turbines	Sanyue	Taiwan, China
Mesh	TSUBAKI	Japan
Chain	KMC	Taiwan, China
Intermediat ralay	OMROM	Japan
24V DC power supply	NW	Taiwan, China
Single-pole switch	CHNT	China
Air switch	CHNT	China
3 color light	ONLION	China
Limit switch	CHNT	China
Electric putter	KONFIA	Taiwan, China
Thermal couple wire	PAIKO	Japan
Temperature test seat	K	Japan
Control button	IDEC	Japan
Fan	Guanghui	Taiwan, China
Oil cup	Oilbell	Taiwan, China

About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

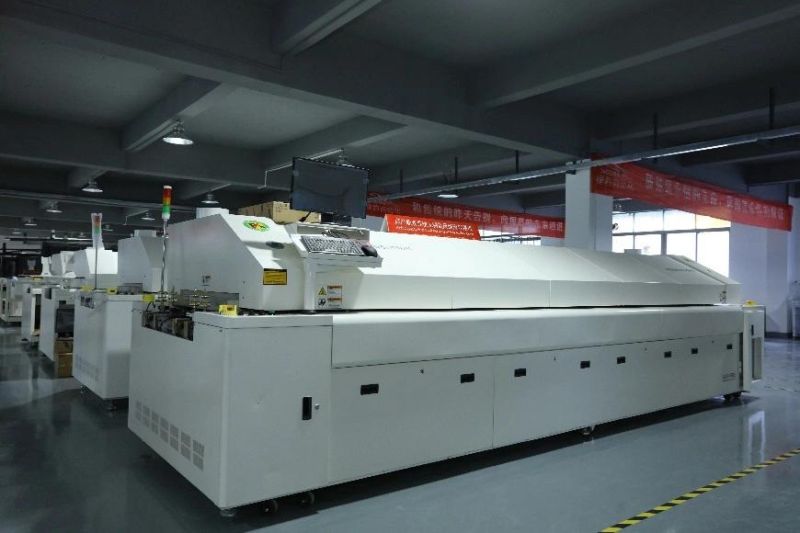

Our Factory:
