• Model NO.：Jaguar F10
• Automatic Grade：Automatic
• Installation：Vertical
• Heating Zones：Up10,Bottm10
• Length of Heating Zones：3890mm
• Cooling Zone：2
• Max. Width of PCB：400mm, Optional 460mm
• Power Supply：5 Line, 3phase, 380V 50,60Hz
• Precision：High Precision
• Heating System：Electric
• Customized：Customized
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Jaguar
• Origin：Shenzhen, China
• HS Code：85151900
• Production Capacity：100PCS,Month
• Package size per unit product：582.00cm * 134.00cm * 151.00cm
• Gross weight per unit product：2150.000kg

Basic Info.

Model NO. Jaguar F10 Automatic Grade Automatic Installation Vertical Heating Zones Up10/Bottm10 Length of Heating Zones 3890mm Cooling Zone 2 Max. Width of PCB 400mm, Optional 460mm Power Supply 5 Line, 3phase, 380V 50/60Hz Precision High Precision Heating System Electric Customized Customized Transport Package Wooden Case Specification CE Trademark Jaguar Origin Shenzhen, China HS Code 85151900 Production Capacity 100PCS/Month

Packaging & Delivery

Package size per unit product 582.00cm * 134.00cm * 151.00cm Gross weight per unit product 2150.000kg

Product Description

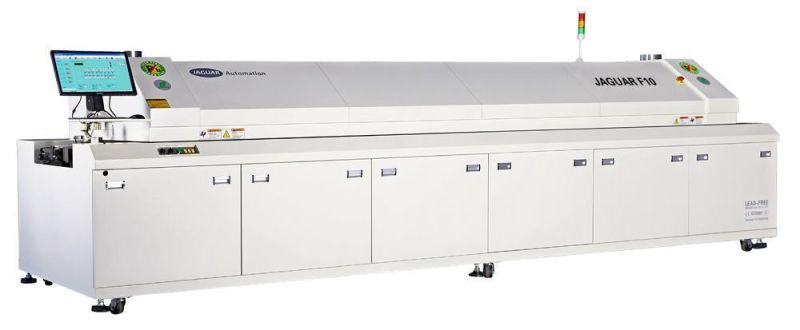

JAGUAR 10 Zones Lead Free Hot Air Reflow Oven F10

Introduction:
Heating zone 1: New energy saving furnace design, 4 sides return air, the best temperature uniformity
2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
3: 10 heating zones, 20 heating elements( up 10/ bottom 10 ) , independent temperature control and switch
4: The latest design of nozzle plate, the best insulation performance

Control system 1: Siemens PLC, table machine performance
2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch

Conveyor system 1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the
accuracy is ±2mm/ Min

Cooling zone
1: Axial fan forced air cooling ( Up and bottom dual cooling)

Protection system
1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
2: IPC+UPS
3: Super positioning flexible and convenient screw width adjusting system
4: IPC delay shutdown function

Machine parameters

Machine dimension	5800 x 1320x 1490mm
Color	Ivory
Net weight	Approx. 2150kgs
Exhaust volume	10m3/min X 2pipe
Power supply	5 wire, 3 phase, 380V 50/60HZ
Startup power consumption	42KW
Steady power consumption	8-12KW
Warming time	About 30mins
Temperature range	Room temperature-300ºC
Mesh width	500mm
Max PCB width	420mm
Component height	Up 30mm/Bottom 25mm
Conveyor direction	Left-right ( option: Right-left)
Conveyor speed	300-2000mm/min
Data storage	Process data and status storage(80GB)
Abnormal alarm	Over temp or low temp alarm, sound and light 2 modes

Machine configuration

Heating zone	Up 10, Bottom 10
Cooling zone	Up 2, Bottom 2
Control mode	WINDOWS 7+IPC+PLC
Temperature control mode	PID closed loop+SSR driver
Thermal couple wire	3pcs
Conveyor system	Mesh+Chain
Conveyor control mode	3 inverters+Panasonic motor
Hood lift	Electric hood lift
UPS	Standard, power off standby to protect PCB production completed

Parts list

Parts	Brand	Origin
SSR	Carlo Gavazzi	Switzerland
Thermal SSR	Carlo Gavazzi	Switzerland
Thermal SSR seat	Carlo Gavazzi	Switzerland
UPS	Santak	U.S.A
Contactor	CHNT	China
PLC	Siemens	Germany
Temperature control module	Huceen	Taiwan, China
Heating tube	Hotset	Germany
Inveter	Delta	Taiwan, China
Conveyor motor	Panasonic	Japan
Width adjustable motor	Panasonic	Japan
HT motor	Guanghui	Taiwan, China
Display	Lenovo	China
Host	Lenovo	China
Cable	Siemens	Germany
Conveyor tooth box	Panasonic	Japan
Width adjustment tooth box	Panasonic	Japan
Galvanized wind turbines	Sanyue	Taiwan, China
Mesh	TSUBAKI	Japan
Chain	KMC	Taiwan, China
Intermediat ralay	OMROM	Japan
24V DC power supply	NW	Taiwan, China
Single-pole switch	CHNT	China
Air switch	CHNT	China
3 color light	ONLION	China
Limit switch	CHNT	China
Electric putter	KONFIA	Taiwan, China
Thermal couple wire	PAIKO	Japan
Temperature test seat	K	Japan
Control button	IDEC	Japan
Fan	Guanghui	Taiwan, China
Oil cup	Oilbell	Taiwan, China

About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.



Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

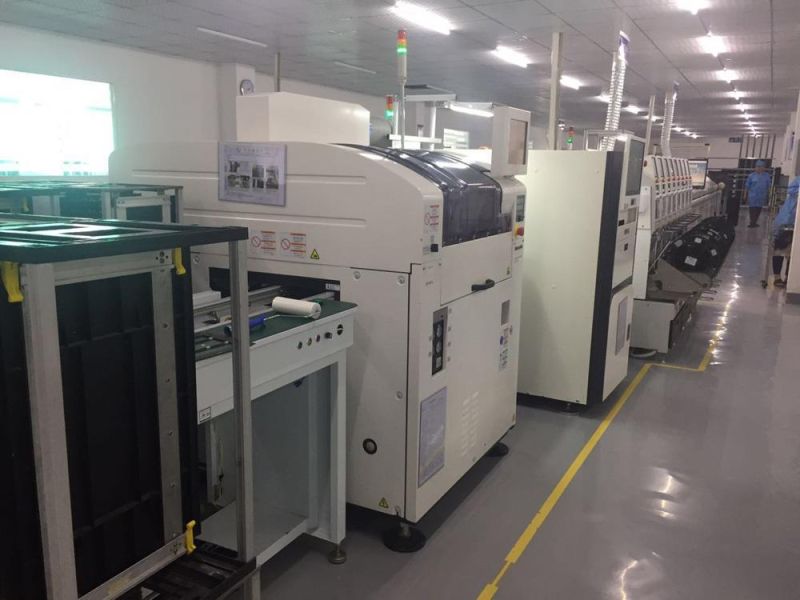

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

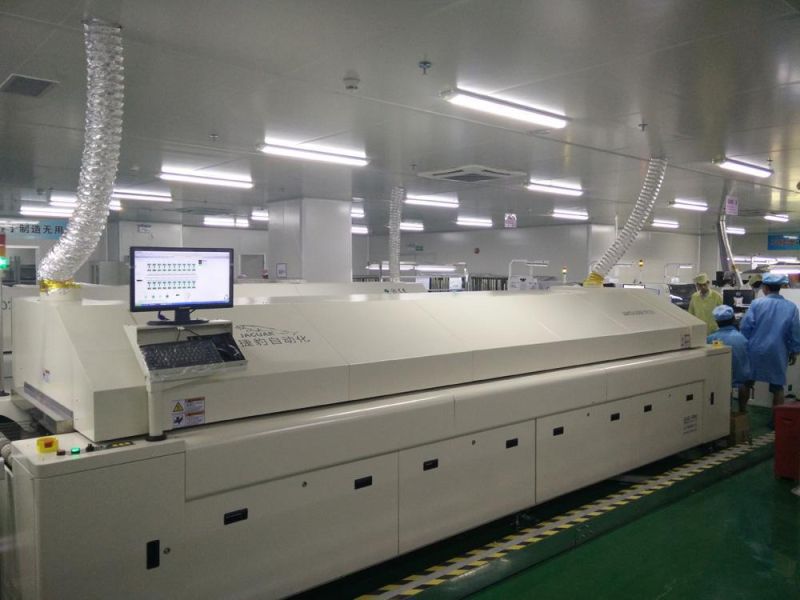

Customer and Feedback:
