• Model NO.：XJ-500
• Voltage：220-660V or Other Voltage
• Transport Package：Standard Shipping Packing
• Specification：XJ-500
• Trademark：NEWTOPP
• Origin：China
• Production Capacity：500sets,Year

Basic Info.

Model NO. XJ-500 Voltage 220-660V or Other Voltage Transport Package Standard Shipping Packing Specification XJ-500 Trademark NEWTOPP Origin China Production Capacity 500sets/Year

Product Description

Application field:

Use for copper stranded conductor,aluminium stranded conductor,steel strand,aluminum conductor steel reinforced and steel wire rope twisting/stranding.With the center taping machine,it also can be insulation core wire into a cable and segment of control cables stranded.


Machine technical parameter:
 1.Inlet diameter: conductor 1.8-4.0mm,steel 1.5-3.0mm piled yarn 1.5-5.0mm2.Host rotation speed:500/rpm3.Twisting pitch:49-4504.Outlet speed:24-2255.Capstan wheel diameter;10006.Take-up bobbin specification:PN1000





Machine parts:


No.	Parts name&Specs.	Qty
1	Center pay off	1set
2	Tubular strander host	1set
3	Center taping machine(optional)	1set
4	Capstan device	1set
5	Take up and traversing device	1set
6	Electric system	1set

Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan)



Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us
Company introduction



Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.

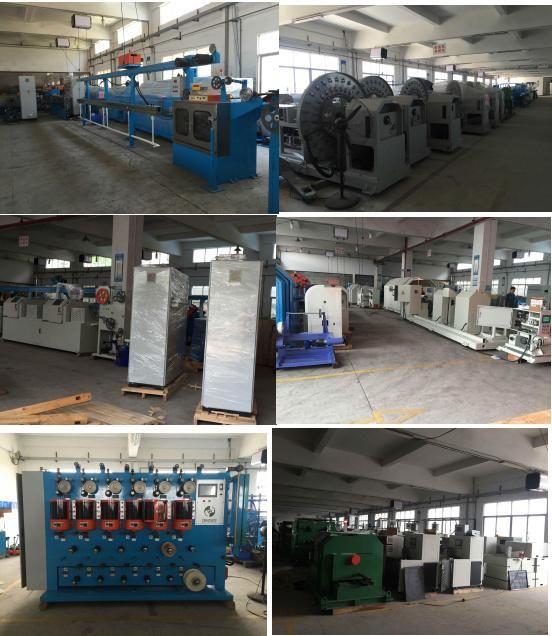

Our product

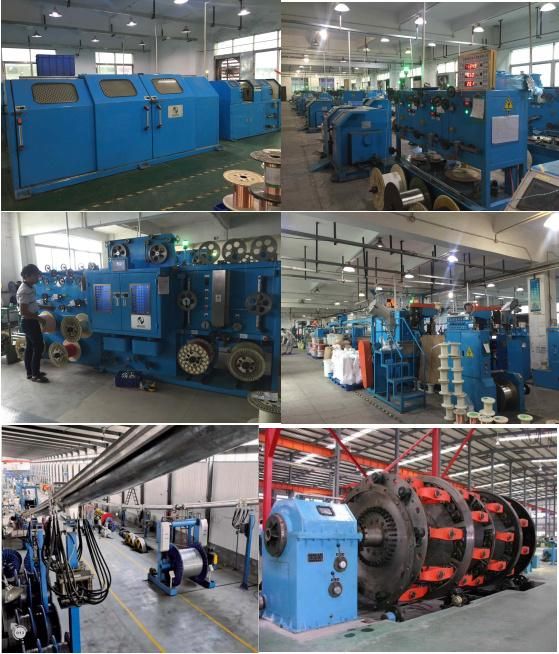

Products in client site
