• Model NO.：R350
• Temperature Accuracy：Within2 Degree
• Temperature Uniformity：Within 5 Degree
• Rated Voltage：AC Single-Phase 220V, 50Hz
• Max Power：7.8kw
• Average Power：2.5kw
• Weight：150 Kg
• Dimension：1500* 700* 520mm
• Transport Package：Plywood with Foam Inside
• Trademark：TORCH
• Origin：Beijing China
• HS Code：851410900
• Production Capacity：1000 Sets Per Year

Basic Info.

Model NO. R350 Temperature Accuracy Within2 Degree Temperature Uniformity Within 5 Degree Rated Voltage AC Single-Phase 220V, 50Hz Max Power 7.8kw Average Power 2.5kw Weight 150 Kg Dimension 1500* 700* 520mm Transport Package Plywood with Foam Inside Trademark TORCH Origin Beijing China HS Code 851410900 Production Capacity 1000 Sets Per Year

Product Description

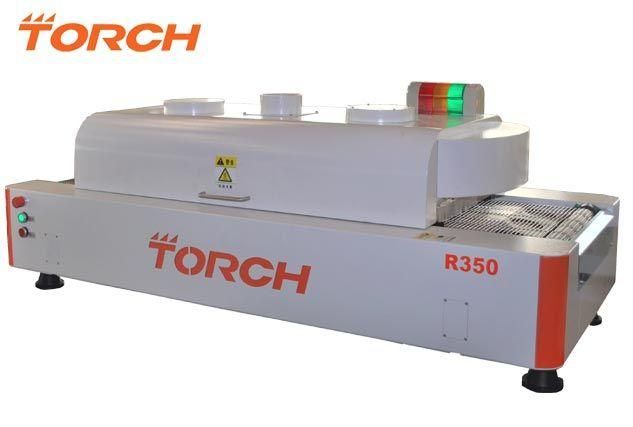

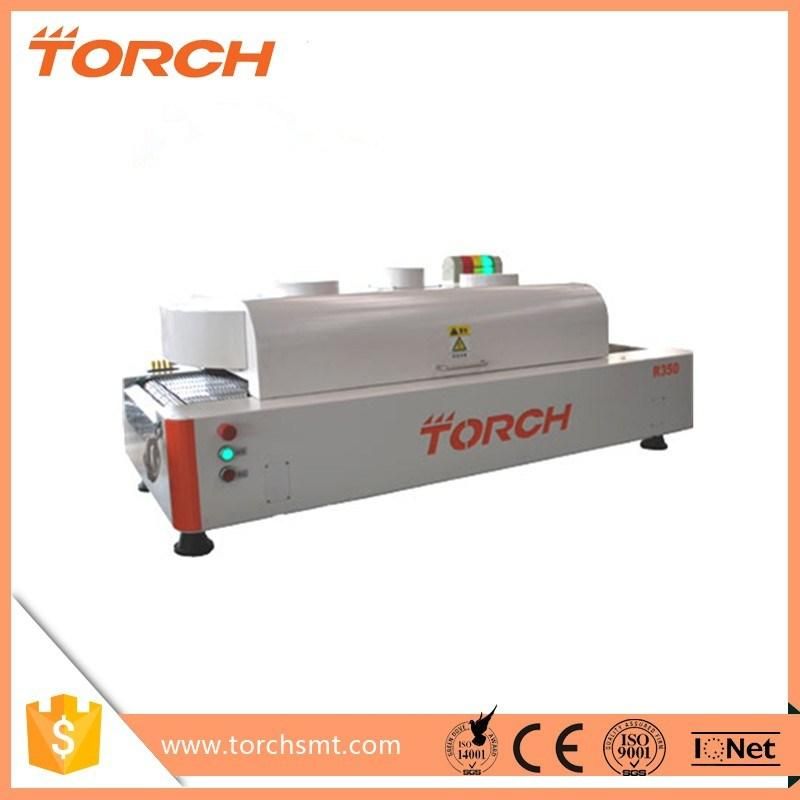

Lead free desk type reflow oven with Real testing temperature function MODEL: R350

What is R350?

R350 is the first inline lead free reflow oven worldwide with six temperature zones and the min inline reflow oven worldwide with six temperature zones
R350= a inline lead free reflow oven + a temperature curve tester with four channels
Obviously, R350 not only has lead free welding function, but also has temperature curve testing function
On SMT, in order to weld better, we need to constantly adjust temperature curve of reflow oven, the reference data we adjusted is to be reflow welding machine "black box" recorded the temperature curve tester of the circuit board welding plate, the black box is mainly used for reflow soldering process temperature monitoring, adapt and improve welding process, welding process and the analysis and adjustment of various process parameters and store all kinds of data at the same time to facilitate product quality tracking and feedback. Meet the ISO9001 requirements
R350 has high reliability, high temperature uniformity, circuit board welding plate actual temperature real time detection, module temperature control system, the test report format is beautiful and very high cost performance
R350 client orientation
1, Small batch electronics factory, research institutes
2, High welding requirements
3, Big size circuit board welding requirements
4, Cover small area, office and home office can be used
5, Can weld BGA, CSP, QFP etc
R350 unique feature
Worldwide min heating zone can achieve desk type six temperature zone welding function
1 R350 adopts pioneering panel heating technology science and technology, higher temperature evenness
2 R350 adopt four groups inline testing function, complete four ways circuit board inline real tine testing heat function
3 R350 can weld big size circuit board: 600*350MM.
4 R350 using induction heating technology, six temperature zones reflow soldering can be used in air conditioning socket normally. More suitable for users of various environment.
5 R350 free maintenance function, the whole machine adopts module temperature control system, it is convenient to use for users, reduce the cost of the long-term using
6 R350 increase waste gas purification filtering functions after welding produce. More environmental protection
7 R350 adopt patent flux recovery technology, can ensure flux recycling in the using process, more environmentally friendly equipment, at the same time furnace chamber free cleaning.
8 R350 with high thermal insulation materials and patent technology, normal using process, the equipment shell temperature less than 48 degrees
R350 technology feature
Advantage
Computer control
Manage and set permission of operation software through software
Plenty of function; Easy operation
TORCH independent research & development of temperature control software, the temperature control temperature curve set intuitive and can store a large number of temperature curve, at the same time bring analysis statistics and printing function, welding many kinds of products, record many times experimental data, both is ok
Visual operation, convenient, just need input data
Temperature curve real time test, at the same time software has powerful analyst function, real time test welding temperature curve, can display actual temperature curve which is convenient to adjust and master lead free technology curve, especially the key point controlling, such as heat zone and molten zone


If the product modification without prior notice, when buying, please in kind prevail

Model	R350
MAX PCB size	600*350MM
Temperature Accuracy	+/- 2 Degree
Temperature Uniformity	+/- 5 Degree
Max Power	7.8KW
Average Power	2.5KW
Weight	150KG
Dimension	1500* 700* 520mm
