• Model NO.：tp300v
• Type：High-speed Chip Mounter
• Component Available：SMD Capacitor and Resistor 0402 and IC (Below 20mm
• Repeating Accuracy：0.06mm
• Typical Mounting Speed：2500-3000cph
• Placing Speed：2000-2800cph
• Transport Package：1100*960*750mm
• Trademark：TERMWAY
• Origin：China
• Production Capacity：2 Sets Per Month

Basic Info.

Model NO. tp300v Type High-speed Chip Mounter Component Available SMD Capacitor and Resistor 0402 and IC (Below 20mm Repeating Accuracy 0.06mm Typical Mounting Speed 2500-3000cph Placing Speed 2000-2800cph Transport Package 1100*960*750mm Trademark TERMWAY Origin China Production Capacity 2 Sets Per Month

Product Description

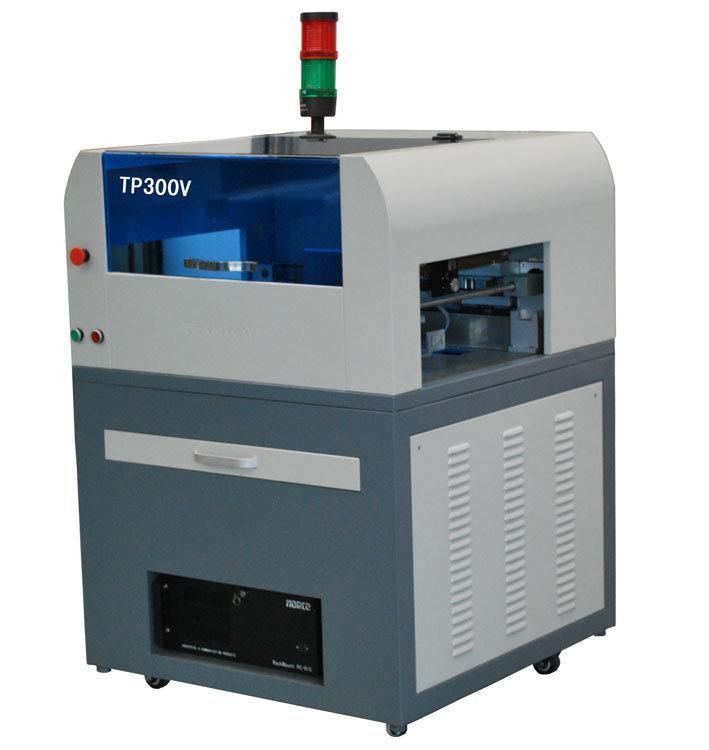

Pikc and Place Machine TP300V

TP300V Summary
1. Desktop automatic mounter with precision spare parts
2. High precision machine after annealing treatment, high frequency oscillation and natural aging
3. Scraping movement planer makes the accuracy reach 0.01mm
4. Precision level P guide rail ( repeatability of 0.02mm and good abrasion resistance
5. Patented mount model
6. Electric intelligent feeder
7. Chemical cromalin hardening process on PCB seat and feeder seat. (SMC spare part)
8. The only one desktop mounter that can place 50 types of component
9. Patented out-look design
10. Powerful data import function, any formats of PCB file can be imported. A new program can be finished in 10 minutes
11. Software control system for placement, can match famous brand Siemens
12. The desktop visional mounter with off- line program function
13. The one can realizes remotely maintain and analysis and inspection function
14. The one and only automatic desktop visional mounter for 0402 and 0.5mm QFP
15. Equips good quality industrial control computer
16. Equips Tunable optical generator to satisfy different colors for the identification of component
17. Silence, noise never go up to 50 dB
18. Actual speed: 3000cph
19. Software reminds of maintainance period
20. LOGO is Stamp-formed
Features:
1. Cast structure, the bottom platform and Y-axis gantry structure uses casting process in SMT line, which effectively guarantee a reliability and stability for long-term use.
2. It uses high precision guides to improve placement accuracy.
3. High-resolution industrial camera to complete the visual position mount of high-precision components.
4. Vision system can automatically identify MARK point to improve production efficiency and chip placement accuracy.
5. Automatically visual programming without input device coordinates by hand. Programming is simple, easy for beginners to learn.
6. A small IC tray as standard configuration
7.5 nozzle as standard configuration, the software will remind you to replace the nozzle.
8. Cost-effective automatic placement machine, it is most suitable for small scale production, research and personal use.
Optional:
1. GF electric feeder (CF type as alternative models suitable for low-cost production and R&D use)
2. Nozzle

Model	TP300V
PCB board size	350×210mm
Max moving range	410×320mm
Max moving range of Z axis	10mm
Typical Mounting speed	2500-3000cph
Max mounting speed	3000 cph
Repeating accuracy	±0.06mm
Position	Visional Position
Component available	SMD capacitor and resistor 0402 and IC (below 20mm)
Programme	Video study/ Keyboard input
Driving method	Use industrial synchronously driving belt
Belt feeder	Feeder 8mm,12mm,16mm,24mm optional
Feeder number	1. 24 pcs of 8MM GFTA-08S at left side 2. 22 pcs of 8MM GFTA-08S at right side(when no IC tray)
IC tray num	1 at most,in the situation, TP300V just can place 24 pcs of 8MM GFTA-08S feeder
Operation system	WINDOWS  XP
Compressed air	80psi(0.5Mpa),air flow 80L/M
Power supply	220v,50Hz,2kw
Weight	350kg
Dimension	780×850×1200mm
