• Model NO.：N350
• Product Name：3 Zones SMT Full Automatic Tht Assembly Line Wave
• Lead Time：20-50days
• Usage：SMT Assembly Line
• Quality：100% Tested
• Weight：1100kg
• Transport Package：Vacuum Packing
• Specification：3300(L)*1400(W)*1560(H)
• Trademark：Morel
• Origin：China
• Production Capacity：50set,Month

Basic Info.

Model NO. N350 Product Name 3 Zones SMT Full Automatic Tht Assembly Line Wave Lead Time 20-50days Usage SMT Assembly Line Quality 100% Tested Weight 1100kg Transport Package Vacuum Packing Specification 3300(L)*1400(W)*1560(H) Trademark Morel Origin China Production Capacity 50set/Month

Product Description

Product description:

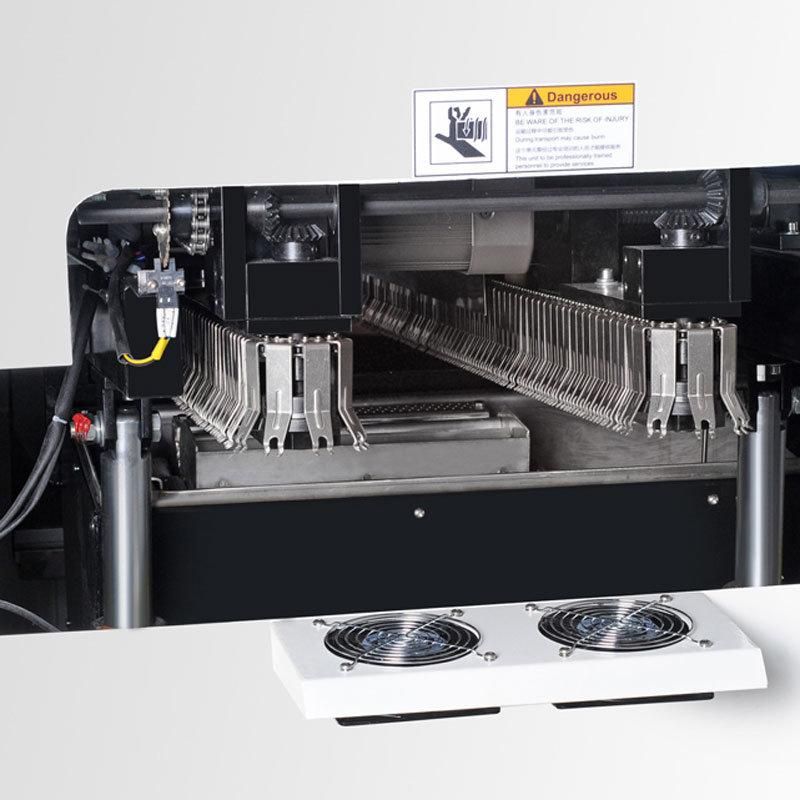

SMT Full Automatic THT Assembly line Wave Soldering - N350



Number of pre-heaters	3
Pre-heater passage	1600mm
Body size	3300(L)*1400(W)*1560(H)
Outside dimension	4100(L)*1400(W)*1560(H)
Weight	1100KG
Total/steady consumption	24KW/6-8KW
Air supply	0.5MPa
Preheating style	Hot air

Preheater consumption	220V 8KW

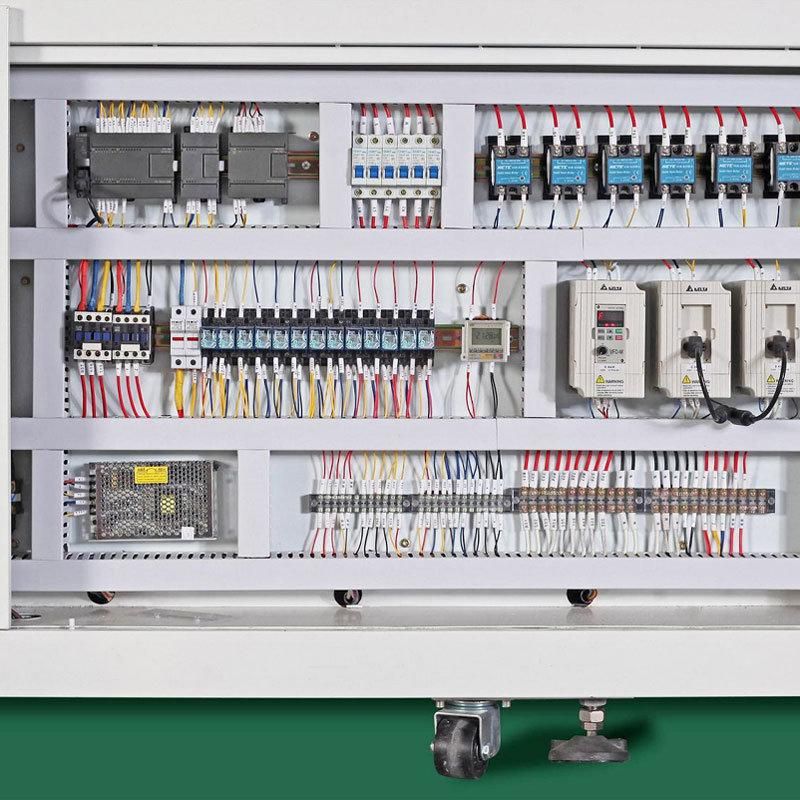

Control  method	PC +PLC
Range of temp. set-point	Room temperature-300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder application	Lead-free
Solder pot capacity	320KG
Solder pot temperature	300ºC

Solder pot consumption	380V 12KW
Solder temp. control method	PID&SSR
Wave motor consumption	1KW 220V
Solder melting	About 120mins for setting 250ºC
PCB  width	50-350mm
Conveyor speed	300-2000mm/min
Conveyor direction	L→R (R→L optional)
Conveyor inclination	4-7 º
Flux pressure/capacity	3-5 bar/6.5L
