• Model NO.：N350
• Voltage：220V
• Lead Time：15days
• Melting Time：80min
• Power Supply：1pH 220V 10W
• Flux Capacity：6.5liter
• Transport Package：Vacuum Packed in Wooden Cases
• Specification：3900*1420*1750mm
• Trademark：JAGUAR
• Origin：Shenzhen, China
• HS Code：8515190000
• Production Capacity：100PCS,Mounth

Basic Info.

Model NO. N350 Voltage 220V Lead Time 15days Melting Time 80min Power Supply 1pH 220V 10W Flux Capacity 6.5liter Transport Package Vacuum Packed in Wooden Cases Specification 3900*1420*1750mm Trademark JAGUAR Origin Shenzhen, China HS Code 8515190000 Production Capacity 100PCS/Mounth

Product Description

Product Description

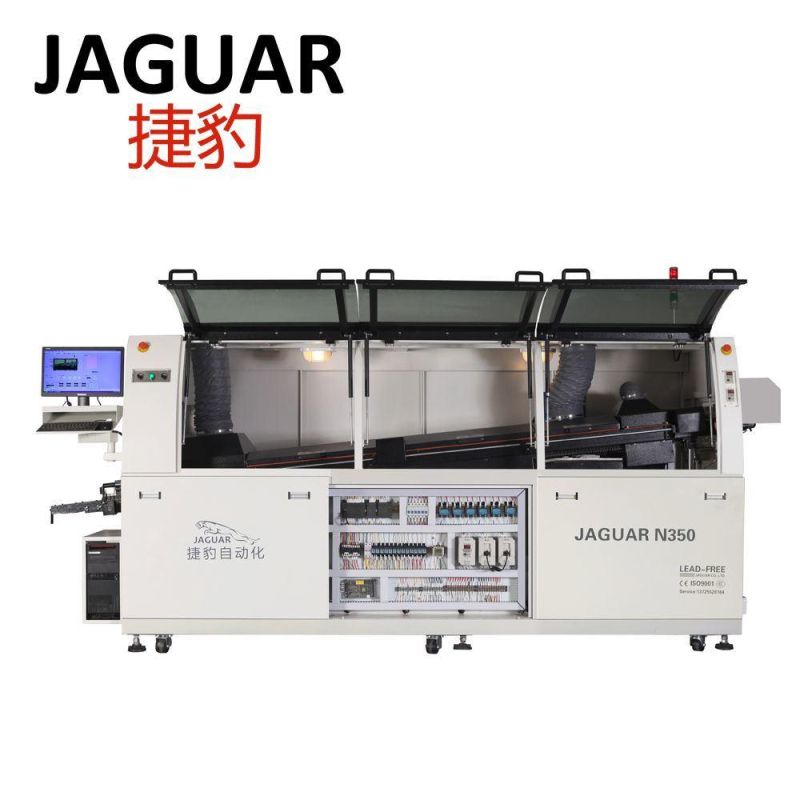

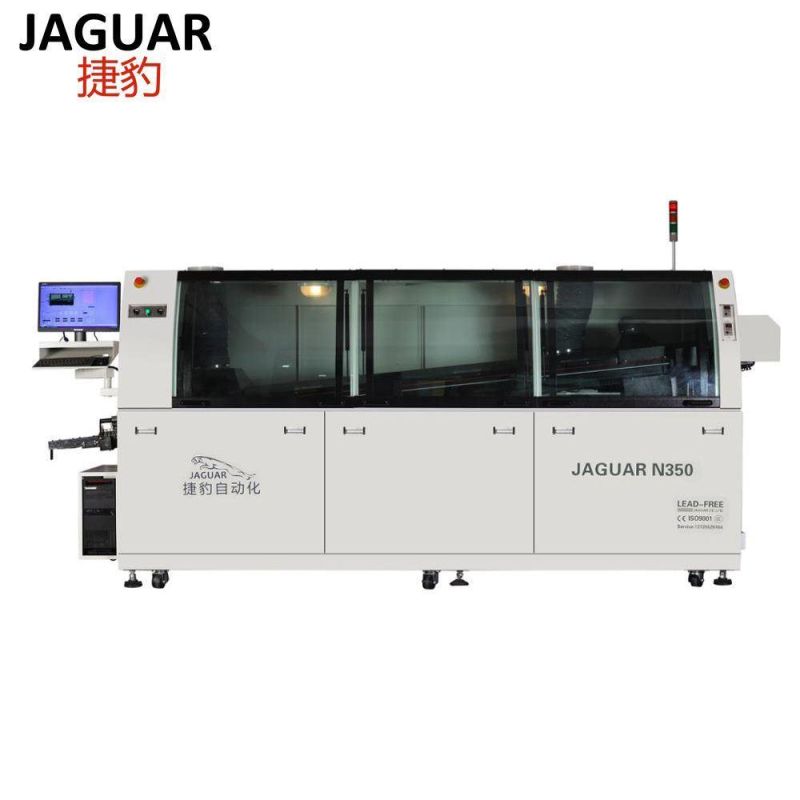

 Best price/used/second hand SMT wave soldering machine(N350)




Introduction:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by pneumatic cylinders. PLC controlled, accurate and reliable.
4. Preheating system uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
5. Titanium solder fingers, high strengthened double v-groove with tin resistant
6. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
7. Pre-heat passage with modularized design, environmental protection and safety, convenient for cleanup.
8. PID close loop controlled hot air pre-heaters
9. Timer startup feature for solder pot, solder melted in within 90 minutes.
10. With black box memory function, the machine can always store the SPC data, improve work efficiency.
11. Automatic finger cleaner equipped.
12. Intelligent monitoring and alarm system ensure the stable performance and operators' safety.
Specification:

Model No.	JAGUAR N350
Number of pre-heaters	3
Pre-heater passage	1600mm
Body size	3300(L)*1400(W)*1560(H)
Outside dimension	4100(L)*1400(W)*1560(H)
Weight	1100KG
Total/steady consumption	24KW/6-8KW
Air supply	0.5MPa
Preheating style	Hot air
Preheater consumption	220V 8KW
Control  method	PC +PLC
Range of temp. set-point	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder application	Lead-free
Solder pot capacity	320KG
Solder pot temperature	300ºC
Solder pot consumption	380V 12KW
Solder temp. control method	PID&SSR
Wave motor consumption	1KW 220V
Solder melting	About 120mins for setting 250ºC
PCB  width	50-350mm
Conveyor speed	300-2000mm/min
Conveyor direction	L→R (R→L optional)
Conveyor inclination	4-7 º
Flux pressure/capacity	3-5 bar/6.5L

Certification:




FAQ:

 1) This is the first time I use this kind of machine, is it easy to operate?
 There is english manual or guide video that show you how to use machine.
  If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

 2) If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
  If it exceeds 0.5KG, you need to pay the postage.

 3) MOQ ?
 1 set machine, mixed order is also welcomed.

 4) How can I buy this machine from you? ( Very easy and flexible !)
  A. Consult us about this product on line or by e-mail.
 B. Negotiate and confirm the final price , shipping , payment methods and other terms.
 C. Send you the proforma invoice and confirm your order.
 D. Make the payment according to the method put on proforma invoice.
 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
 And 100% quality check before shipping.
 F.Send your order by air or by sea.

 5)Why choose us ?
 A. Gold supplier on Alibaba !
 B. Trade assurance to US$54,000 !
 C. Best price & Best shipping & Best service !

Contact info:

Summer
Sales Manager
Mob : 86-13815447576
Tel:+86-755-23316315   Fax:+86-755-29497125


Jaguar Automation Equipment Co.,Ltd.
Add:Building A07,Jinyuan Industrial Zone,Hongtian Road, Xinqiao Street,Shajing,Baoan,Shenzhen,China
Web: jaguarsmt.en.made-in-china.com
