Single Needle Stator Coil Lacer Winding Lacing Machine
Shanghai Wind Automation Equipment Co., Ltd.- Warranty：12 Months
- Color：Customized
- After-Sales Service：Engineers Avaiable to Service Overseas
- Customized Service：Provided
- Transport Package：Wooden Case
- Specification：Middle Size
Base Info
- Model NO.：WIND-100-CL
- Trademark：Wind Automation
- Origin：China
- HS Code：8479811000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. WIND-100-CL Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/YearProduct Description

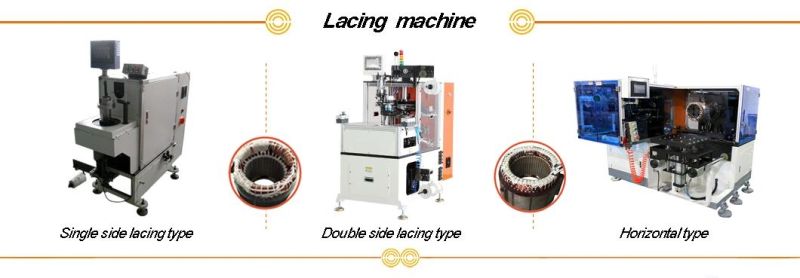

Single Needle Stator Coil Lacer Winding Lacing Machine
This machine is used to do stator coil lacing. Several lacing modes are applicable, such as lacing slot by slot, interval slot, jump slot and fancy slot.
(1) Specification
| Stack length | 10~100mm |
| Stator ID | 35~100mm |
| Stator OD | Max 160mm |
| Coil height | Max 40mm |
| Lacing mode | Slot by slot/ interval slot/ fancy lacing |
| Lacing speed | 0.5s/slot |
| Power | 2KW |
| Power supply | 380V 50/60HZ |
| Weight | 600KG |
| Dimension | 1000x600x1150mm |
(2) Application
This type of machine is suitable for small-sized AC motor, induction motor stators.
(3) Feature
Manual loading and unloading
Several lacing mode applicable
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Easy for operation, No skilled operator required
