• Model NO.：PJL-1200
• Driven Type：Electric
• Transport Package：Poly Wood Case
• Specification：1200x1200
• Trademark：Daheng , OEM
• Origin：Guangzhou China
• HS Code：842489990
• Production Capacity：500PCS Monthly

Basic Info.

Model NO. PJL-1200 Driven Type Electric Transport Package Poly Wood Case Specification 1200x1200 Trademark Daheng / OEM Origin Guangzhou China HS Code 842489990 Production Capacity 500PCS Monthly

Product Description

1 . dynamic polyurethane metering mixing and dispensing machine


2. Application :

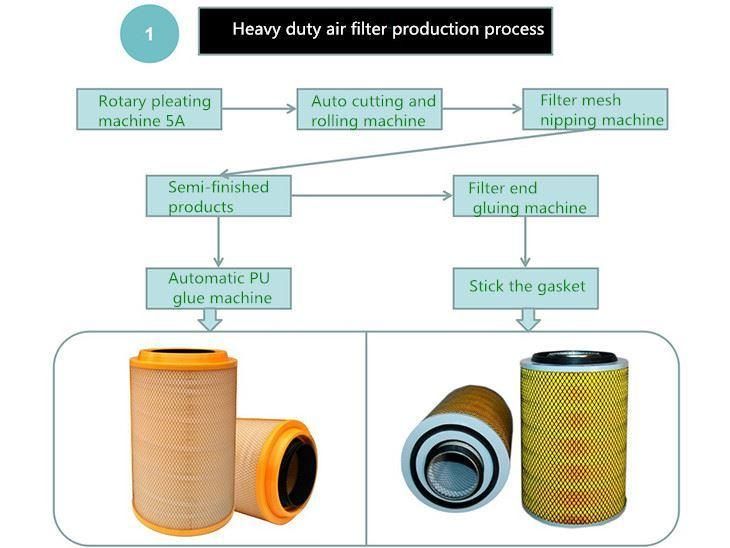

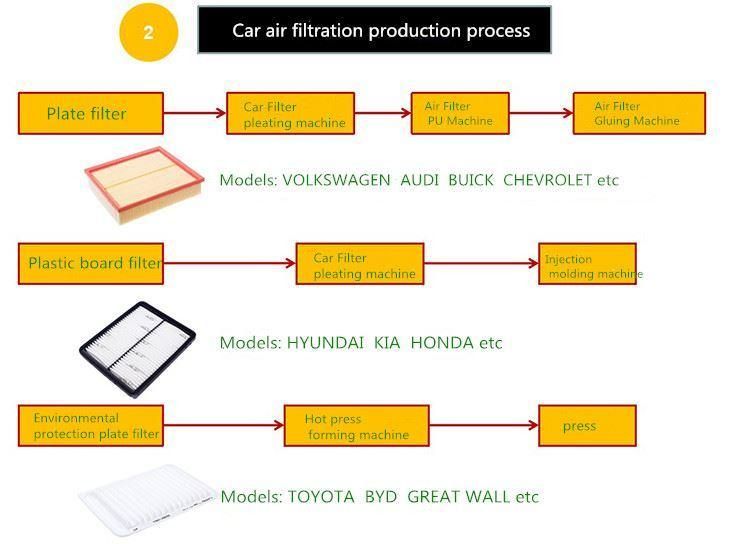

3.Auto Filter Gluing Process :

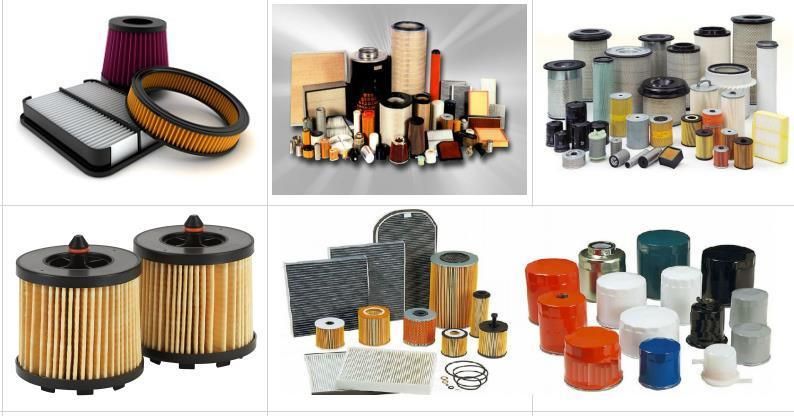

4 . Adhesives and sealants in filter fabrication Manufacturers use adhesives to fabricate numerous filter components - to assemble the filter media itself, bond the filter media into a frame or end cap or install the gasket. Many of these adhesives include sealants or casting compounds. This type of adhesive normally use two component polyurethane . Our glue potting machine is apply for those kind of polyurethane materials, which can be mixed in high precision and make good sealing effect . Some assembly processes require the attributes of both an adhesive and a sealant. For this purpose ,two substrates to bond them together, whereas a sealant is a substance placed into avoid to prevent liquid or gas leakage. For example, when pleated media are bonded into a metal frame or end cap, the adhesive must hold the filter together and provide . So high quality adhesive and glue machine is very important in the production process .

5. Machine parameter

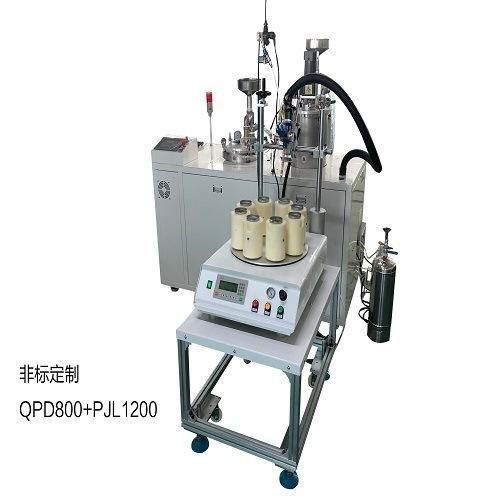

Item No.	PJL-1200+QPD-800
Woring Area	controlled automatically
Mixing Method	Dynamic or Static, optional
Metering Pump	Daheng double cylinder plunger pumps ,screw pumps or gear pumps
Repeatability	±1%
Mixing Accuracy	±1%
Tank Capacity	10L,25L ,40L optional or customized
AB Ratio	1:1;2:1 - 10:1 optional
Gluing Speed	5-66g/5s adjustable
Air Pressure	0.5-0.7Mpa
Power Input	AC220V 50-60Hz or customized
Dimension	1500*980*1980mm
Weight	420KG roughly
Functions additional	Vacuum,self-refilling , heat, tank stir ; dynamic mixing; auto-cleaning .

6.Features

6.1. Accurately ratio mixing , fully automatic mix AB glue.
6.2. Mixing evenly .
6.3. Simple adjustable and easy labor operation
6.4. Universal , widely use for Capacitance, reversing radar, circuit board and so on .
6.5. Memory function , self-cleaning , vacuuming , and Liquid level warning
6.6. More functions can be customized to meet up customers' special requirements.

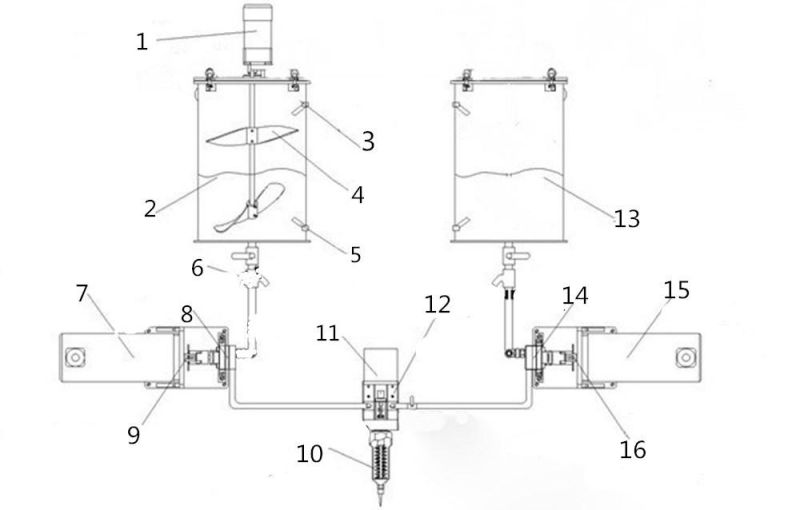

7. Glue mixing principle


1. Stirring motor ( if there is additives inside glue A)
2. Liquid A
3. Sensor for level max
4 Stirring Blades
5. Sensor for level min
6. Filter
7. Metering Motor for Liquid A
8. Metering Pump for Liquid A
9.Metering Detector for Liquid A
10. Mixer Tube
11. Motor for mixing & stirring
12. Valve
13. Liquid B
14. Metering Pump for Liquid B
15. Metering Motor for Liquid B
16. Metering detector for Liquid B Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
